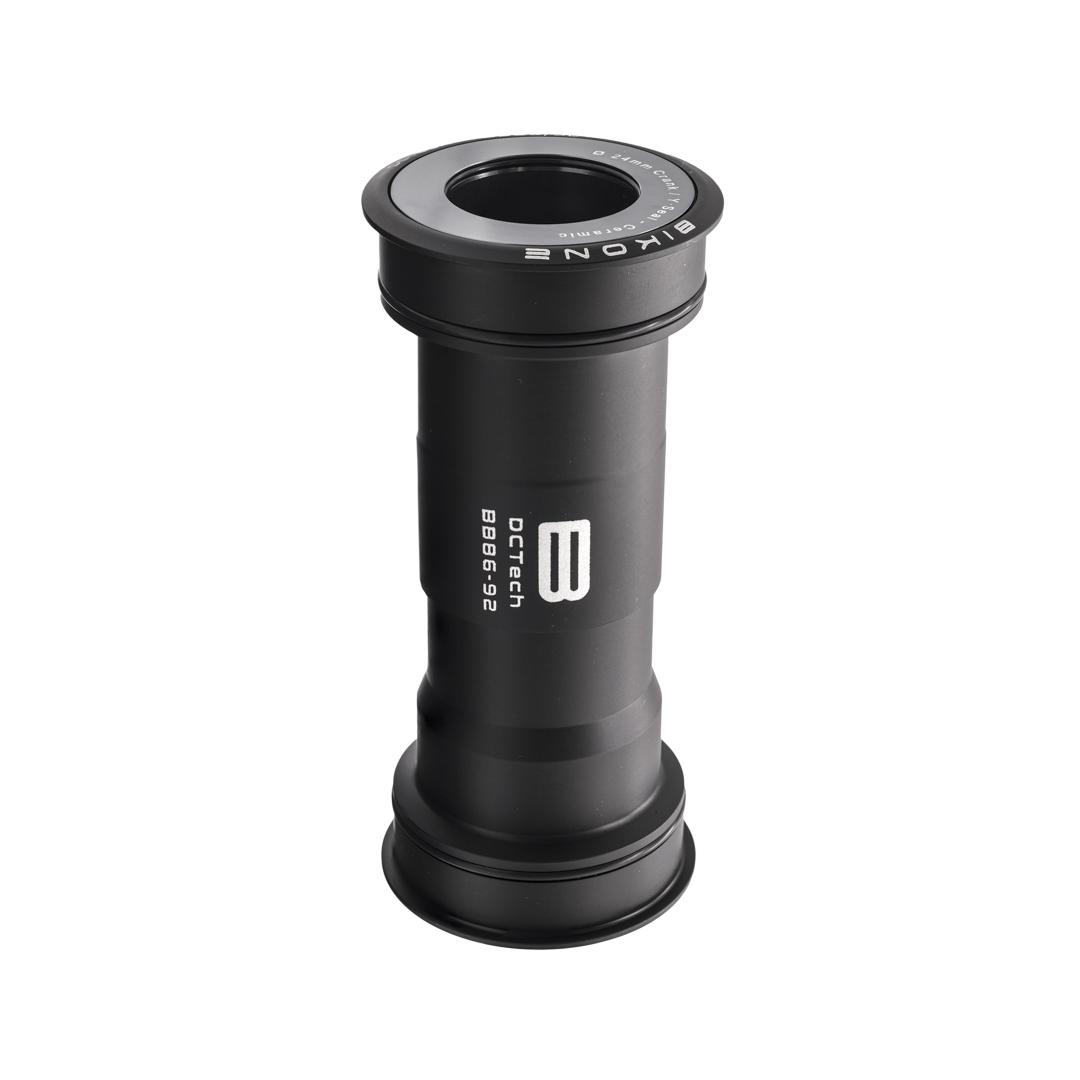

DCTech BB86-92 Ceramic for Shimano

Included in the box:

DCTech BB86-92 Ceramic for Shimano cranks.

Technical specification:

Assembly specs

• Crankset diameter: 24mm (Shimano)
• Frame width: from 86.5 mm to 92 mm (Compatible with mountain and road bikes)
• Frame diameter: 41 mm
• For Pressfit frames

Weight

92 grams

DCTech BB86-92 Ceramic for Shimano Characteristics

• Dual Cup Technology.  Two aluminium cups that perfectly align bearings on both sides, creating a solid center joint that eliminates any noise or movements issues. Find out more about our technology here.
• This bottom bracket uses Hybrid Ceramic Bearings (ABEC5 /P5 – 2RS).
• The cups of our bottom brackets are made from 7075 Aluminium, a high-strenght aerospace-grade aluminium on which we apply a T6 treatment. That makes the material harder and more durable, ensuring that our cups mantain top performance over time.
• Fully sealed. Axial seals on bearings and fully sealed on all surfaces.

Click here to check the compatibility chart between our bottom brackets and bearings.

If you are unsure about the compatibility between your bike and this bottom bracket, please contact customer.support@bikone.com

Warranty:

Lifetime warranty for the cups.

3 year warranty for the bearings.

Check our warranty terms and conditions here.

Please carefully follow the provided use, installation and maintenance instructions on the following link.

Installation

This bottom bracket is assambled like any other and it doesn’t require any special tool. For further information, please check our written manuals.
