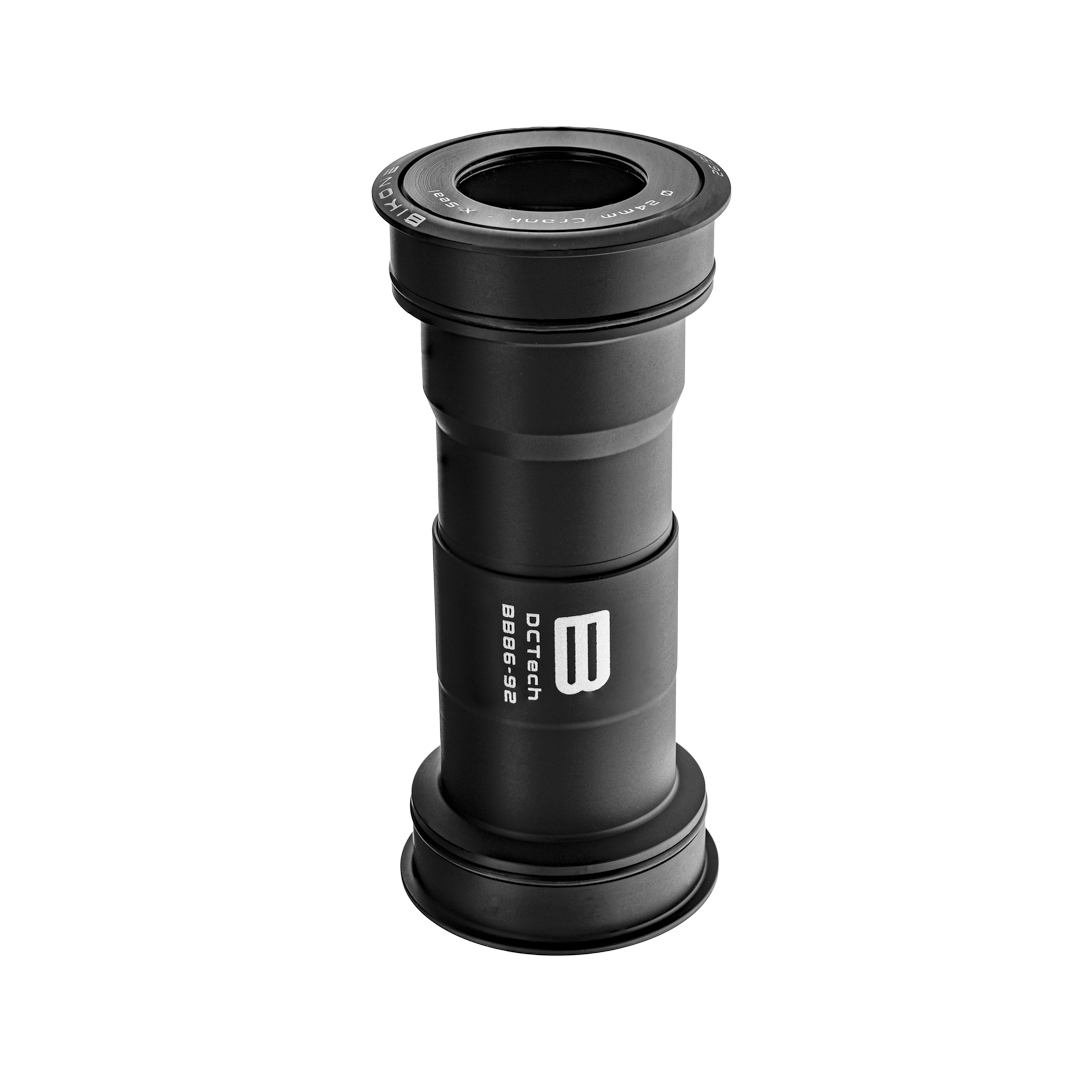

DCTech BB86-92 for Shimano

Included in the box:

DCTech BB86-92 for Shimano shimano cranks

Technical specification:

Assembly specs

• Crankset diameter: 24mm (Shimano)
• Frame width: from 86.5 mm to 92 mm. (Compatible with mountain and road bikes)
• Frame diameter: 41 mm
• For Pressfit frames

Weight

94 grams

Characteristics of DCTech BB86-92 for Shimano

• Dual Cup Technology.  Two aluminium cups that perfectly align bearings on both sides, creating a solid center joint that eliminates any noise or movements issues. Find out more about our technology here.
• This bottom bracket uses Chronium Steel Bearings (ABEC5 /P5 – 2RS).
• The cups of our bottom brackets are made from 7075 Aluminium, a high-strenght aerospace-grade aluminium on which we apply a T6 treatment. That makes the material harder and more durable, ensuring that our cups mantain top performance over time.
• Fully sealed. Axial seals on bearings and fully sealed on all surfaces.

If you are unsure about the compatibility between your bike and this bottom bracket, please contact customer.support@bikone.com

Warranty:

Lifetime warranty for the cups.

3 year warranty for the bearings.

Check our warranty terms and conditions here.

Please carefully follow the provided use, installation and maintenance instructions on the following link.

Installation

This bottom bracket is assambled like any other and it doesn’t require any special tool. For further information, please check our written manuals.
