Included in the box:

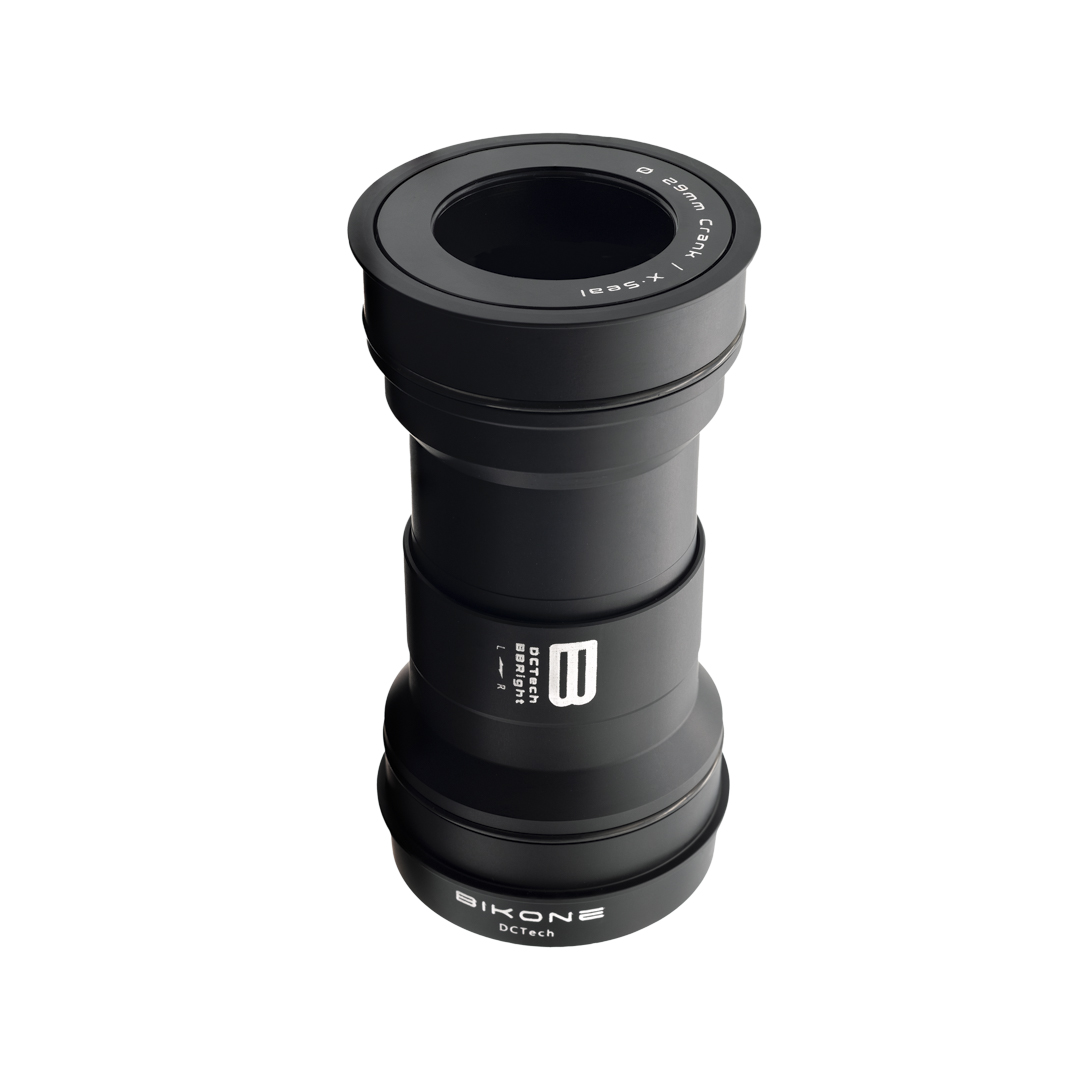

DCTech EVO for Sram Dub cranks

Spacers

  • Two 2 mm spacers
  • One 1 mm spacer

For dub wide cranks, it is neccesary to purchase a Dub Wide Adaptor Kit

Technical Specifications:

Assembly specs:

  • Crankset diameter: 29 mm (Sram dub)
  • Frame widht from 86.5mm to 92mm. Compatible with both mountain (EVO 392) and road bikes (EVO 386).
  • Frame diameter: 46 mm
  • For Pressfit frames

Weight

114 grams

DCTech EVO for Sram Dub Characteristics:

  • Dual Cup Technology.  Two aluminium cups that perfectly align bearings on both sides, creating a solid center joint that eliminates any noise or movements issues. Find out more about our technology here.
  • This bottom bracket uses Chronium Steel Bearings (ABEC5 /P5 – 2RS).
  • The cups of our bottom brackets are made from 6061 Aluminium, an  aerospace-grade aluminium with high corrosion resistance on which we apply a T6 treatment. That makes the material harder and more durable, ensuring that our cups mantain top performance over time.
  • Fully sealed. Axial seals on bearings and completely sealed on all surfaces.

If you are unsure about the compatibility between your bike and this bottom bracket, please contact customer.support@bikone.com

Warranty:

Lifetime warranty for the cups.

3 year warranty for the bearings.

Check out our warranty terms and conditions here.

Please carefully follow the provided use, installation and maintenance instructions on the following link.

Installation

This bottom bracket is assambled like any other and it doesn’t require any special tool. For further information, please check our written manuals.

Weight 0.149 kg
Dimensions 13.5 × 6 × 6 cm
