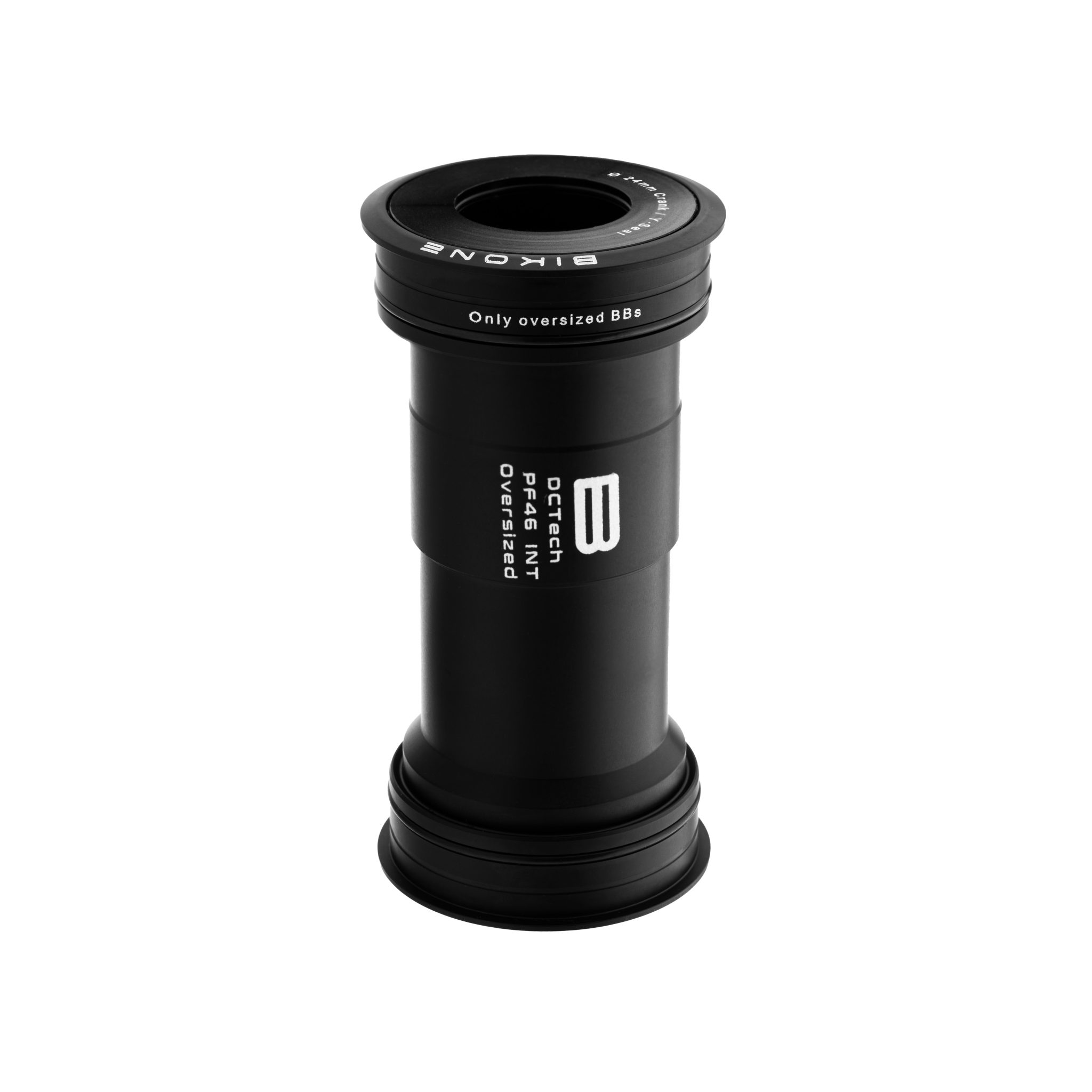

DCTech EVO Oversized for Shimano

Included in the box:

DCTech EVO Oversized for Shimano cranks.

Technical specification:

Assembly specs:

• Crankset diameter: 24 mm (Shimano)
• Frame width: from 86,5 mm to 92 mm.
• Frame diameter: 46 mm
• For Pressfit frames

Our cups are designed to compress and adapt to different frame widhts. Therefore, this bottom bracket is compatible with:

• • EVO 386 (86,5 mm)
  • EVO 392 (92 mm)
  • PF46 Internal (68 – 73)

Weight

110 grams

DCTech EVO Oversized for Shimano characteristics:

• Dual Cup Technology.  Two aluminium cups that perfectly align bearings on both sides, creating a solid center joint that eliminates any noise or movements issues. Find out more about our technology here.
• Oversized bottom bracket. Bike frames can wear out with use, becoming oversized. The cups of these models are 0,1 mm larger than the ordinary ones, so that you can extend your bike’s life.
• This bottom bracket uses Chronium Steel Bearings (ABEC5 /P5 – 2RS).
• The cups of our bottom brackets are made from 6061 Aluminium, an aerospace-grade aluminium with high corrosion resistance on which we apply a T6 treatment. That makes the material harder and more durable, ensuring that our cups mantain top performance over time.
• Fully sealed. Axial seals on bearings and completely sealed on all surfaces.

If you are unsure about the compatibility between your bike and this bottom bracket, please contact customer.support@bikone.com

Warranty:

Lifetime warranty for the cups.

3 year warranty for the bearings.

Check our warranty terms and conditions here.

Please carefully follow the provided use, installation and maintenance instructions on the following link.
