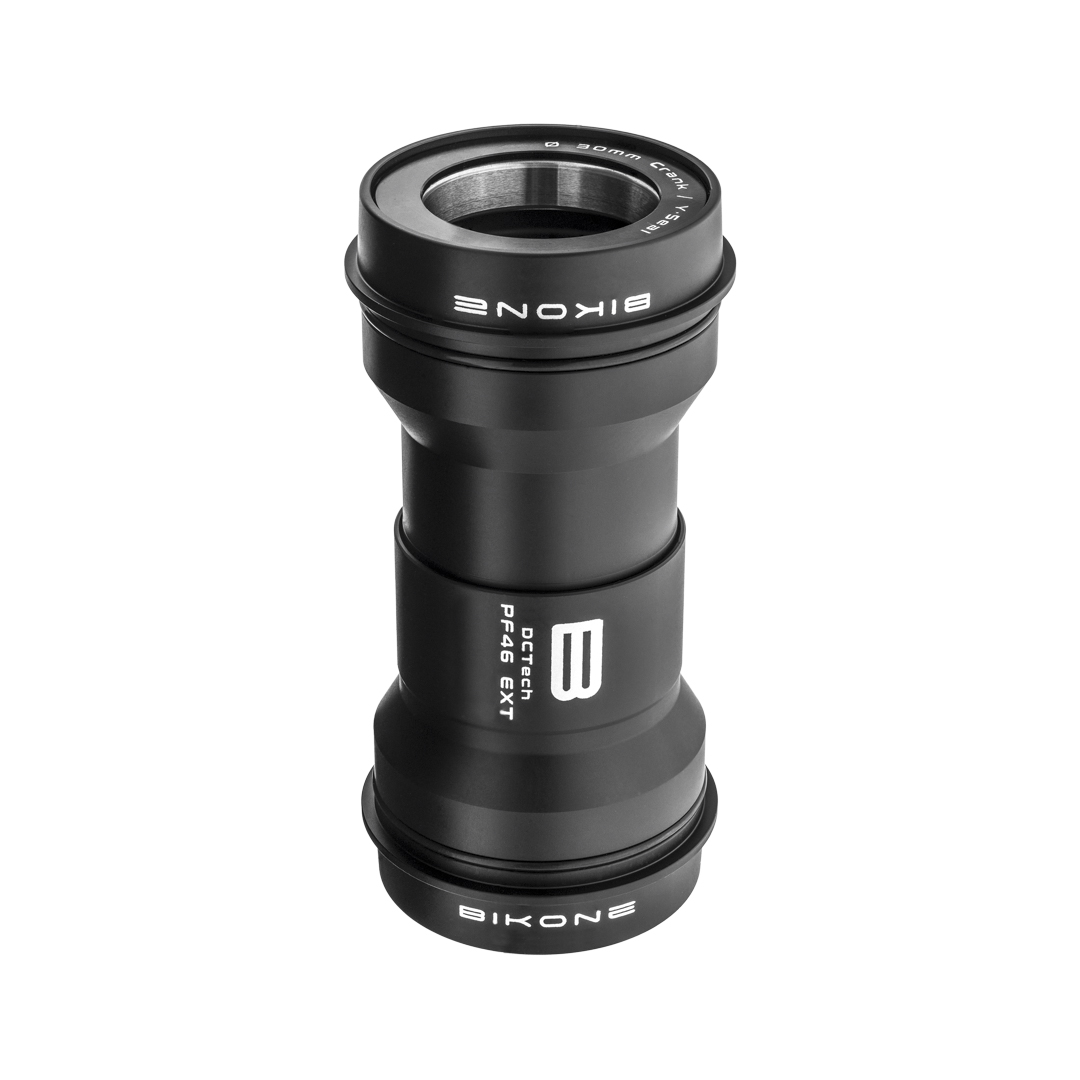

DCTech PF46 External Ceramic for BB30
RM929.75
BIKONE DCTech PF46 External BB30 ceramic bottom bracket is designed to power every kilometer you ride. It is engineered for cyclist who demand the best in performance and durability, wheter you are teckling tough mountain trails or cruising on roads. Thanks to our Dual Cup Technology (DC Tech) and our top quality ceramic bearings, you will experience the smoothest of rides.
See the assembly instructions and spacer list here
For a correct compatibility, mountain cranks should be always mount on mountain frames and road cranks on road frames.
Included in the box:
DCTech PF46 External Ceramic for BB30 cranks.
Spacers not included.
Technical Specifications:
Assembly specs:
- Crankset diameter: 30 mm (BB30)
- Frame width: from 68 mm to 73 mm. (Compatible with mountain and road bikes)
- Frame diameter: 46 mm
- For Pressfit frames
Weight
114 grams
DCTech PF46 External Ceramic for BB30 Characteristics:
- Dual Cup Technology. Two aluminium cups that perfectly align bearings on both sides, creating a solid center joint that eliminates any noise or movements issues. Find out more about our technology here.
- This bottom bracket uses Hybrid Ceramic Bearings (ABEC5 /P5 – 2RS).
- The cups of our bottom brackets are made from 6061 Aluminium, an aerospace-grade aluminium with high corrosion resistance on which we apply a T6 treatment. That makes the material harder and more durable, ensuring that our cups mantain top performance over time.
- Fully sealed. Axial seals on bearings and completely sealed on all surfaces.
Click here to check the compatibility chart between our bottom brackets and the rest of our products.
If you are unsure about the compatibility between your bike and this bottom bracket, please contact customer.support@bikone.com
Installation
This bottom bracket is assambled like any other and it doesn’t require any special tool. For further information, please check our written manuals.
| Weight | 0.149 kg |
|---|---|
| Dimensions | 13.5 × 6 × 6 cm |
