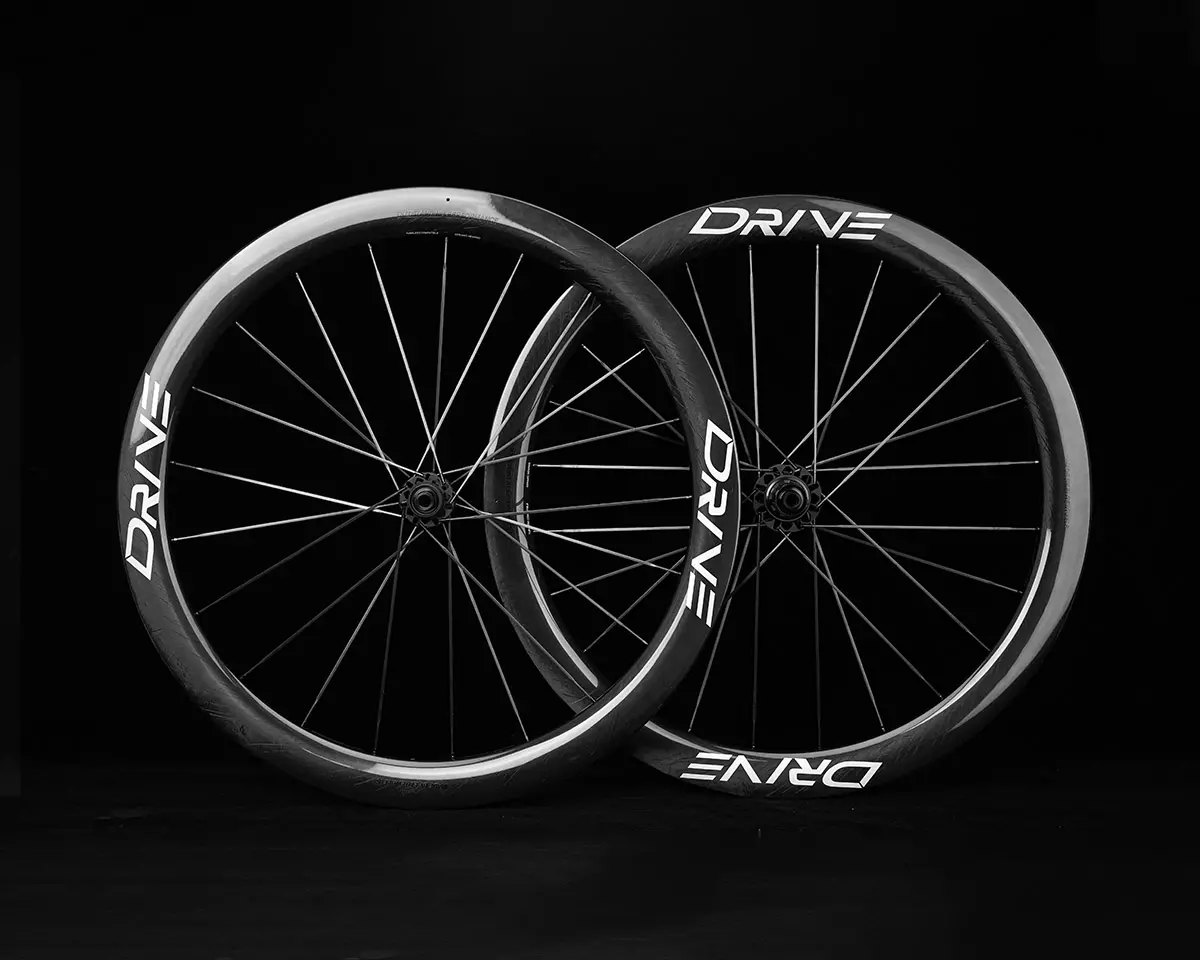

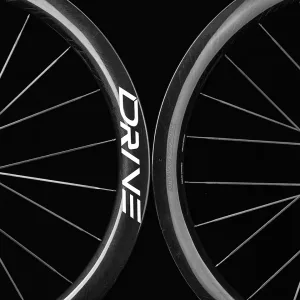

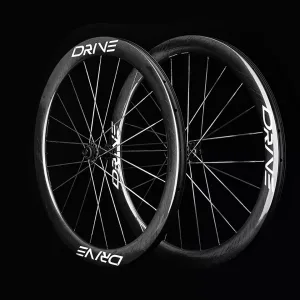

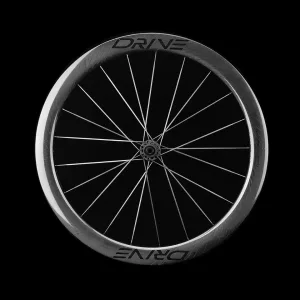

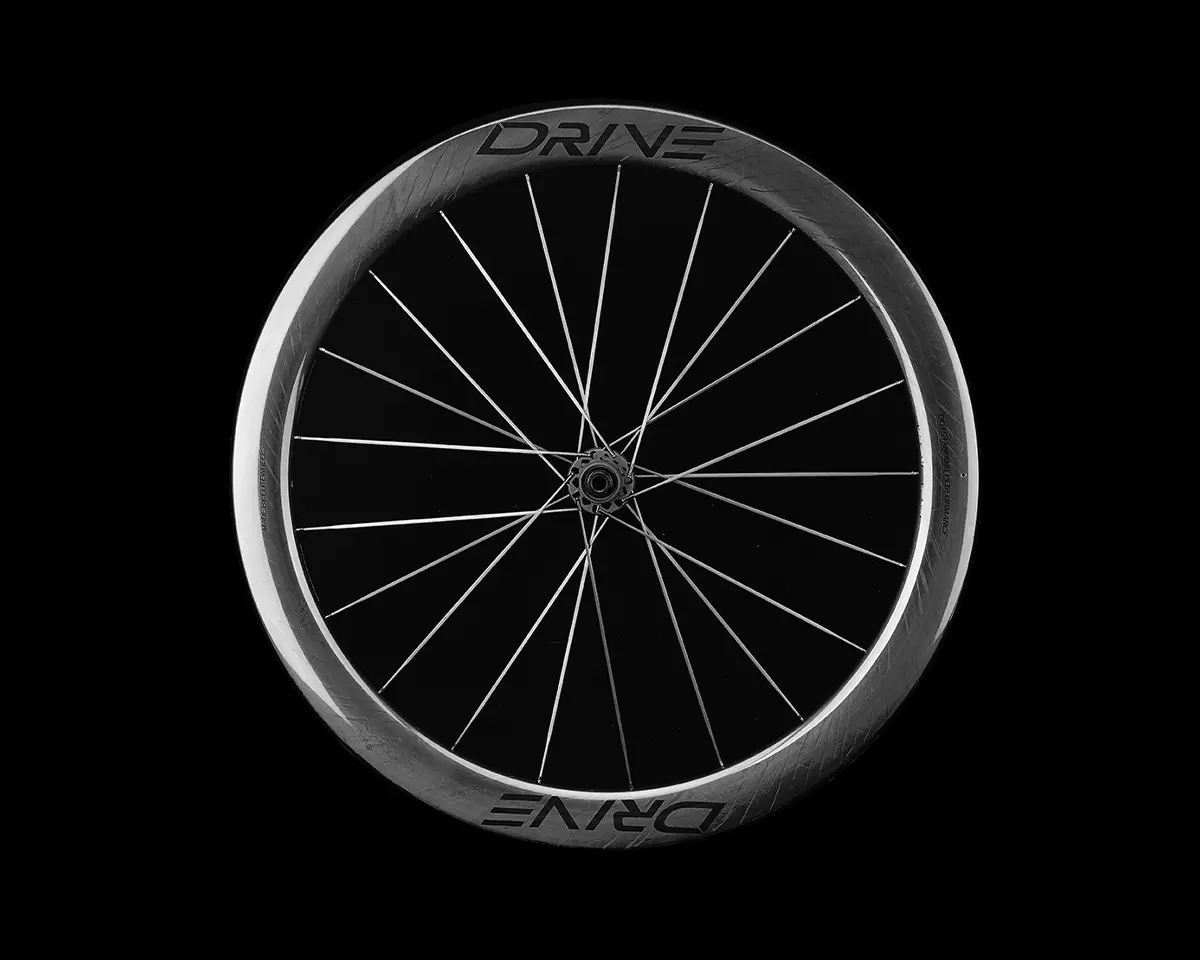

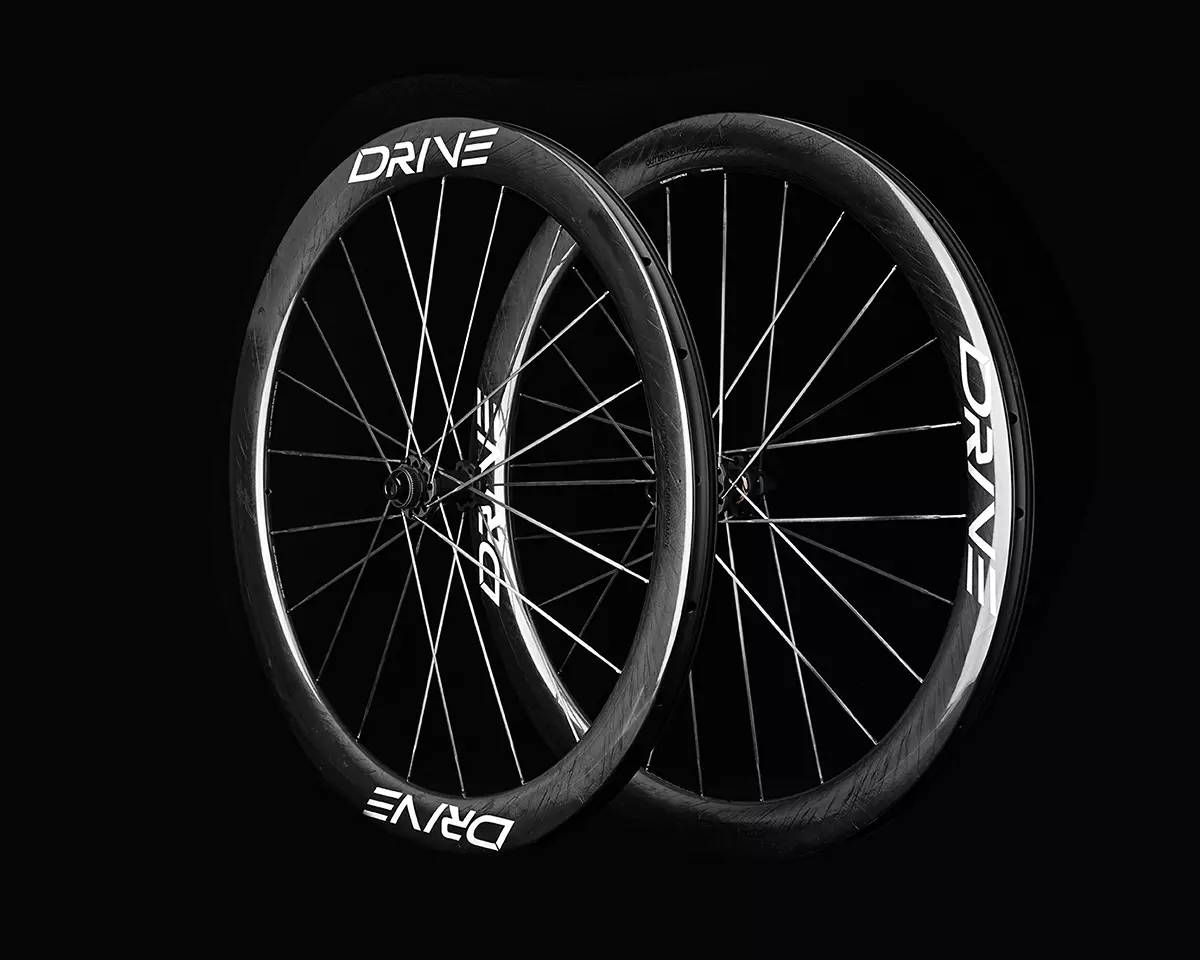

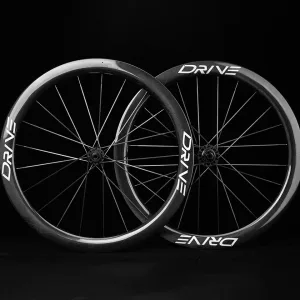

Drive 50D Disc Brake

RM3,980.00 – RM5,350.50

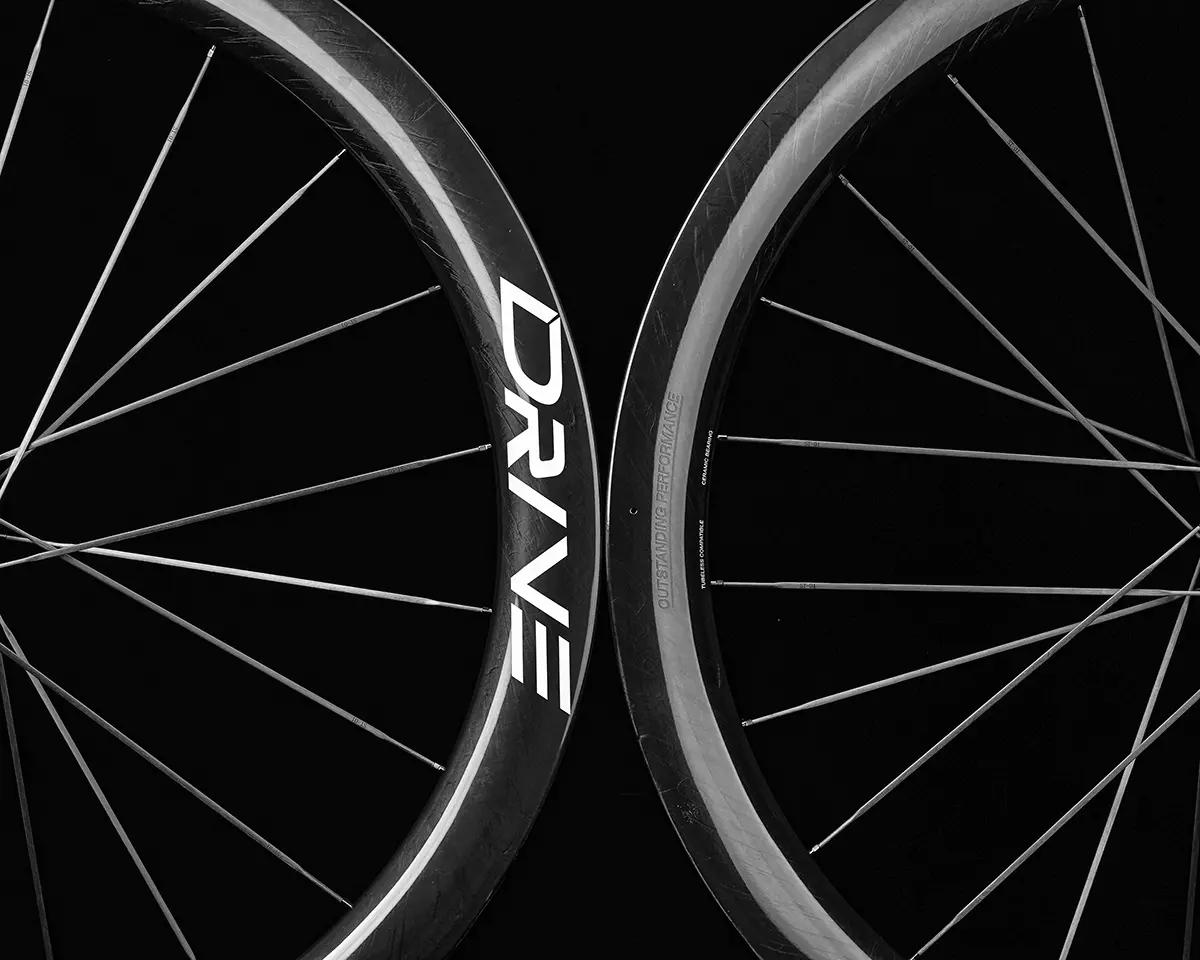

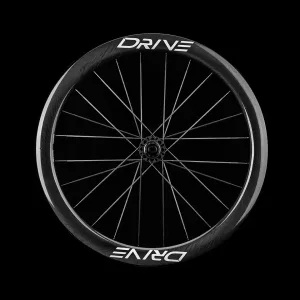

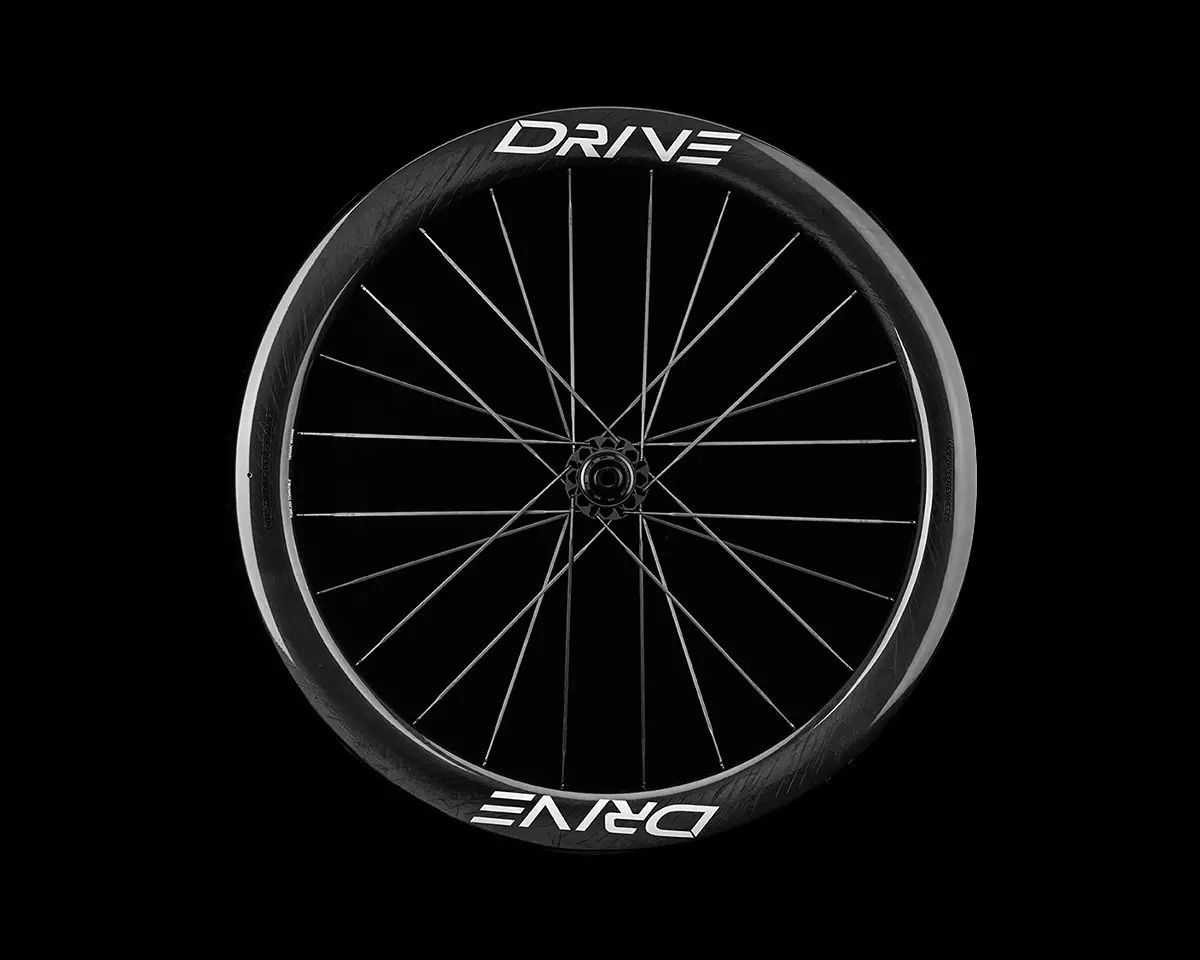

The Drive 50D is dedicated to those who want an all-rounder that is more geared towards riding on the flats. The wheelset features carbon spokes, light and stiff UNI carbon fiber as well as high precision, ceramic bearing hubs. It is tubeless ready and has the added benefit of having a 21mm internal rim width. The Drive 50D is for those who want pro-level wheelset. It comes in at only 1300g for the pair.
â€“ Carbon Spoke Wheelset
â€“ Disc Brake Wheelset
â€“ Brake Interface: Center Lock by default
â€“ Axle: Thru axle by default

*Availability Status:Â Â

1) Black decals, usually shipped in 3 days;
2) Silver decals, usually shipped in 7-10 days.

Color

Freehub Type

Clear

SKU: N/A

Categories: All, Road Wheels, Wheels

Rim
Wheel Sizes	700C
Tire Compatibility	Clincher/ Tubeless
Bead Type	Hooked

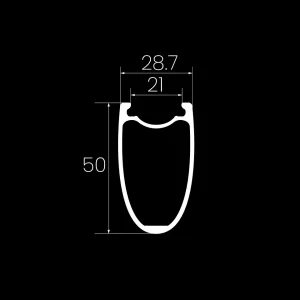

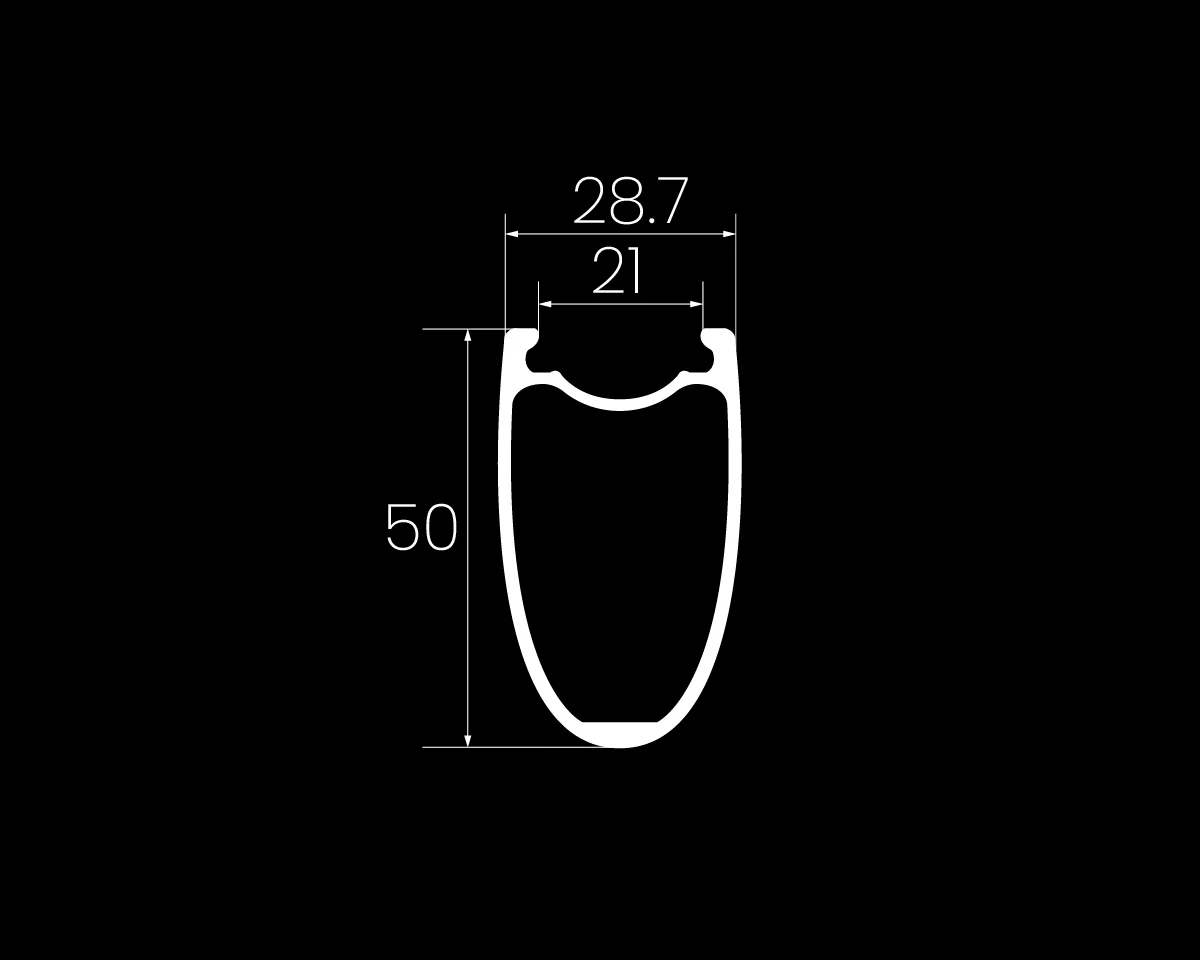

Rim Depth	50mm
Inner Width	21mm
Outer Width	28mm

Hub
Front Hub Spacing	12x100mm
Rear Hub Spacing	12x142mm
Bearing	S&S Ceramic
Brake Compatibility	Disc (Center Lock)
Freehub Type	4 Pawls
Freehub Compatibility	Shimano / SRAM XDR / Campagnolo

Spoke
Front Spoke Pattern	2X/Radial (2:1)
Rear Spoke Pattern	2X/1X (2:1)
Spoke Count	21F/24R
Spoke Type	Carbon Spoke (3.2mm)
Nipple Type	Alloy Secure Lock
Spare Spokes	4PCS

Other
Rim Finish	Glossy Marbling Black
Extras	Pre-installed Rim Tape & Tubeless Valves
Weight (Pair)	1300Â±30g (without tubeless valves and rim tape)
Rider Weight Limit	285lbs/130kg
Recommended Tire Sizes	700 x 25-38C
Certification	UCI Approved, CE Certified

Drive 50mm disc brake carbon spoke wheelset Rims

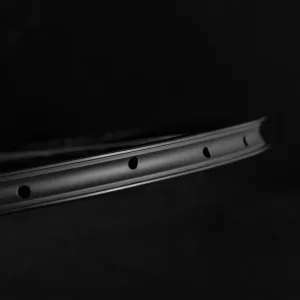

DRIVE RIMS

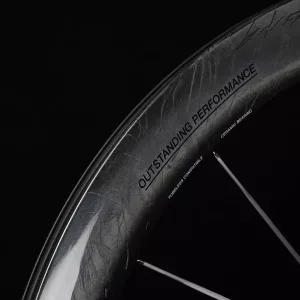

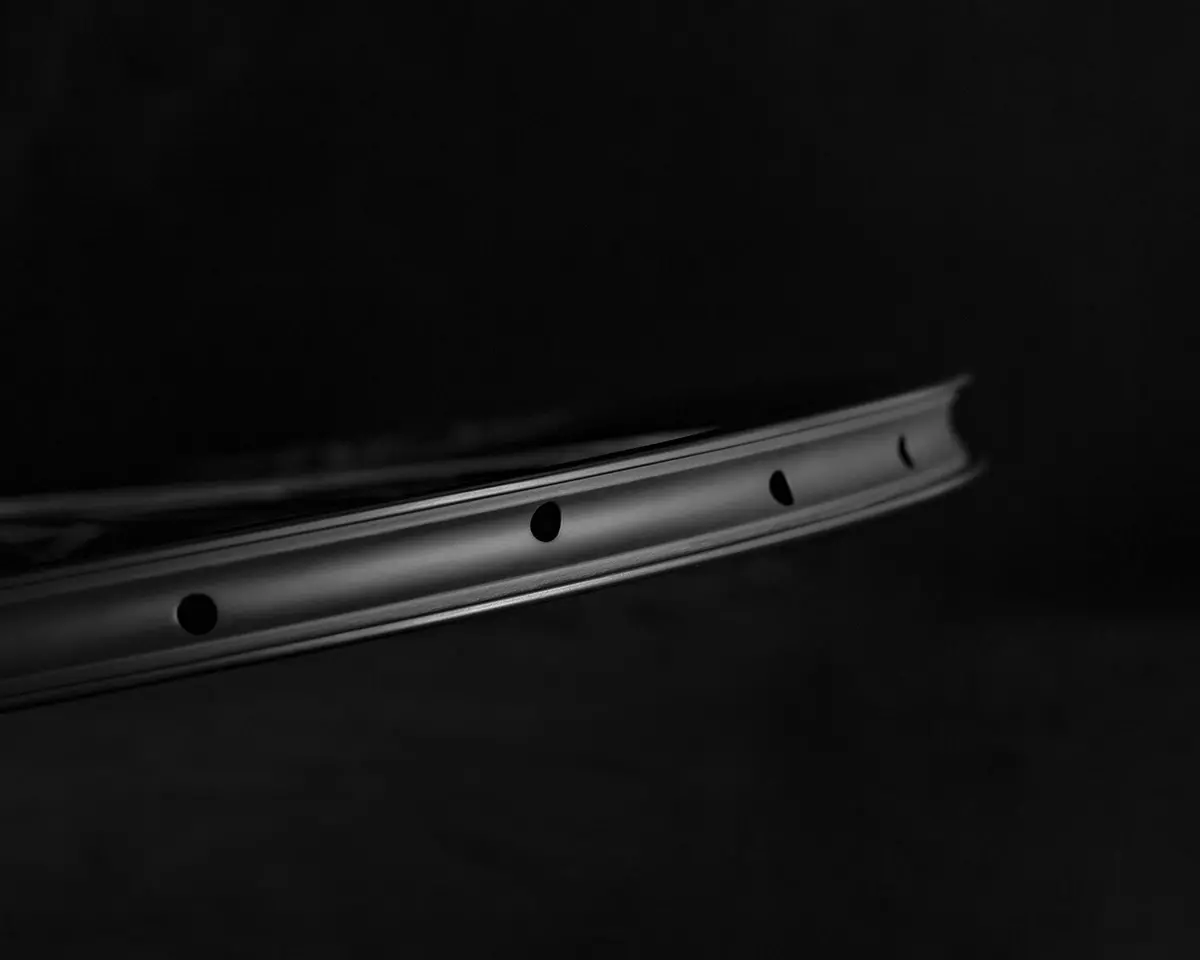

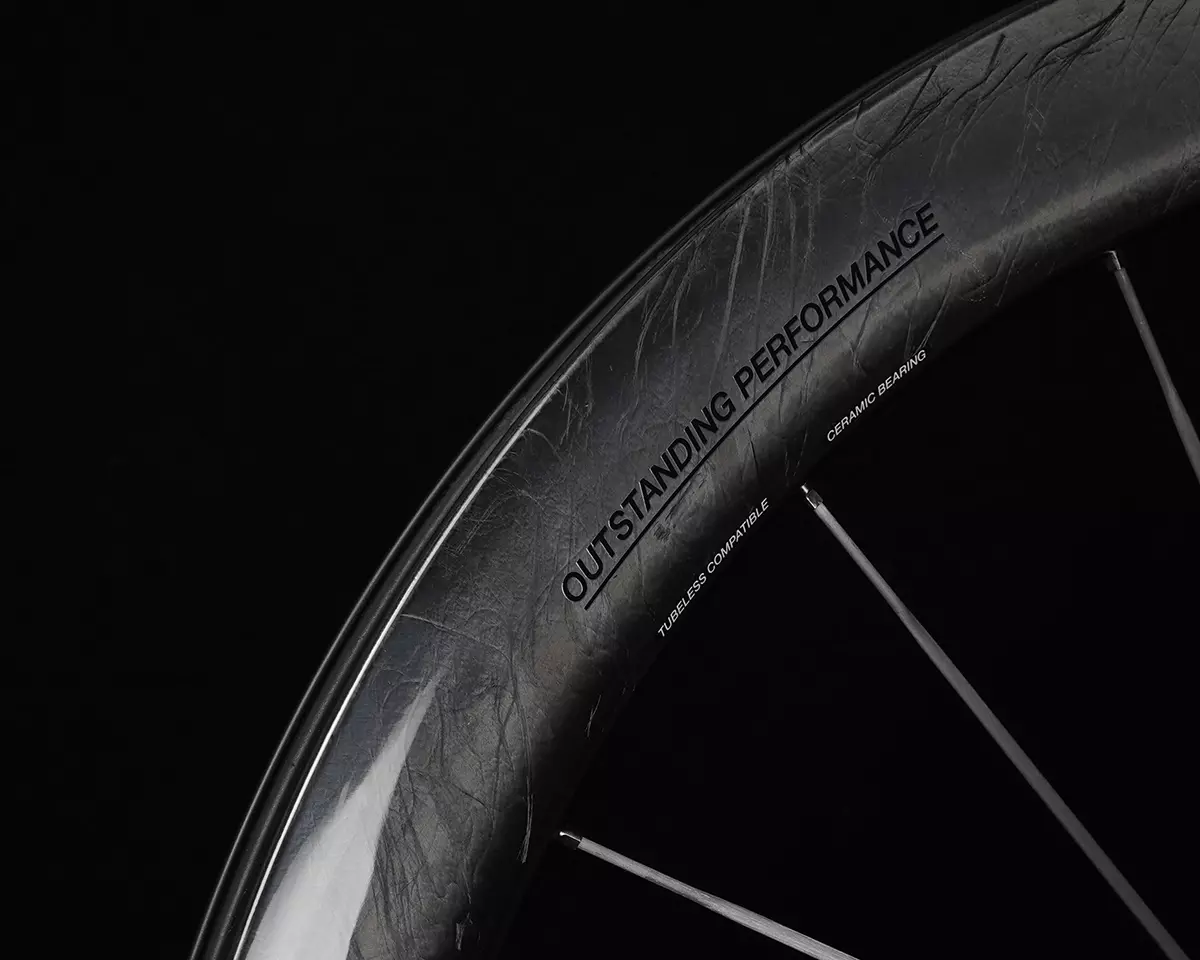

At Elitewheels, we design our Drive wheels to match the needs of professional riders. In order to deliver the best performance, we incorporate our own UNI carbon fiber, a specific ratio of T800 and T1000 carbon fiber ,making rims not only strong, but also exceptionally light and stiff. The U/V-shaped rim profile of the Drive 50D was chosen to make the rim both aero as well as stable in windy conditions. The Drive 50Dâ€™s 21mm inner rim allows for wider tires to be run, allowing for more comfort and grip.

CARBON SPOKES

What separates the Drive 50D from most other wheels is its use of high-modulus carbon spokes. They are 3.2mm wide aero bladed spokes, offering 7% more lateral stiffness as compared to equivalent steel spokes. The carbon spokes are mechanically secured, giving the benefit of being able to be trued and maintained just like regular steel spokes. Anti-loosening technology is also incorporated into the spoke nipples. The threads built into the nipples give them a double-locking effect.

PERFORMANCE HUB

To get the most out of carbon fiber spokes, we specifically designed the hub with high flanges to further increase lateral stiffness and improve handling. Elitewheels manufactures its own high precision hubsÂ with Fanuc CNC machines, which can machine to tolerances of just 0.02mm. This not only allows for lower rolling resistance but also increases bearing longevity.

CERAMIC BEARINGS

The 50Dâ€™s front hub uses two 6803 mixed ceramic bearings. The rear hub uses one 6903 and three 6803 mixed ceramic bearings. These large bearings offer better rigidity. The use of mixed ceramic bearings will allow you to have a more efficient bike, saving you precious watts.
