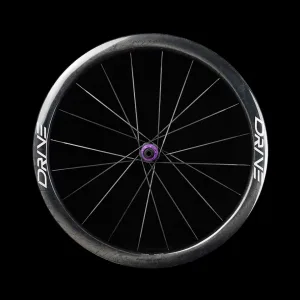

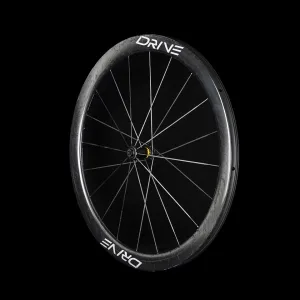

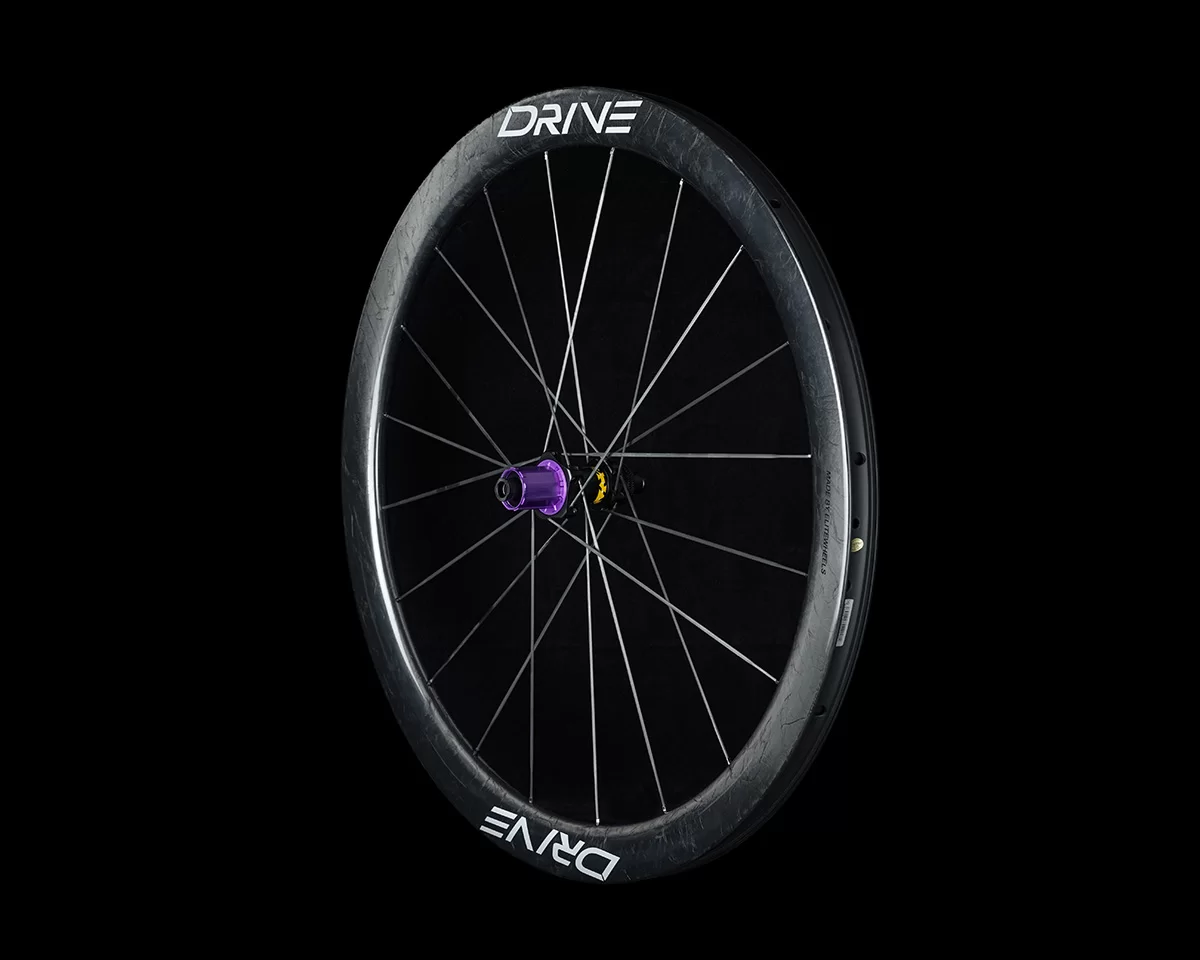

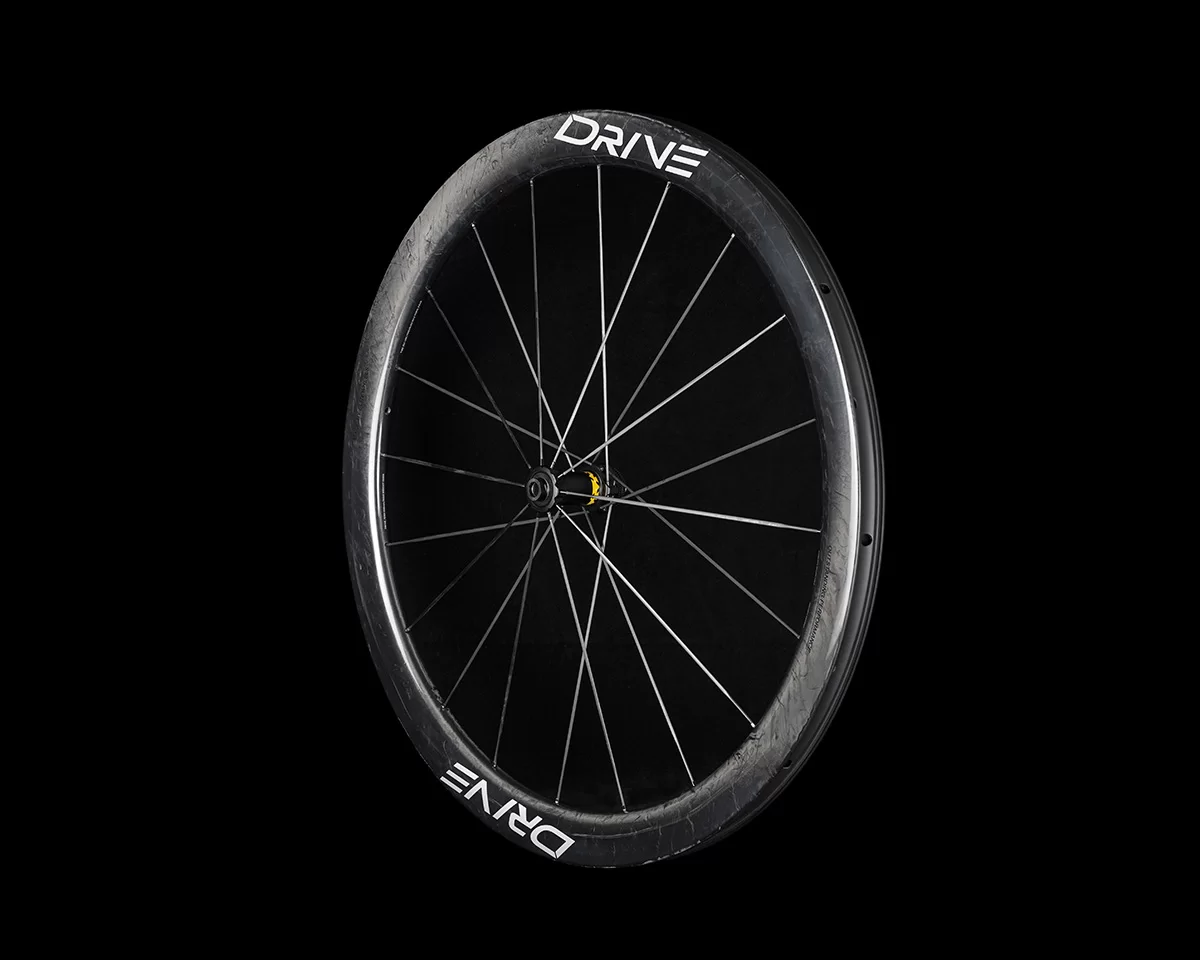

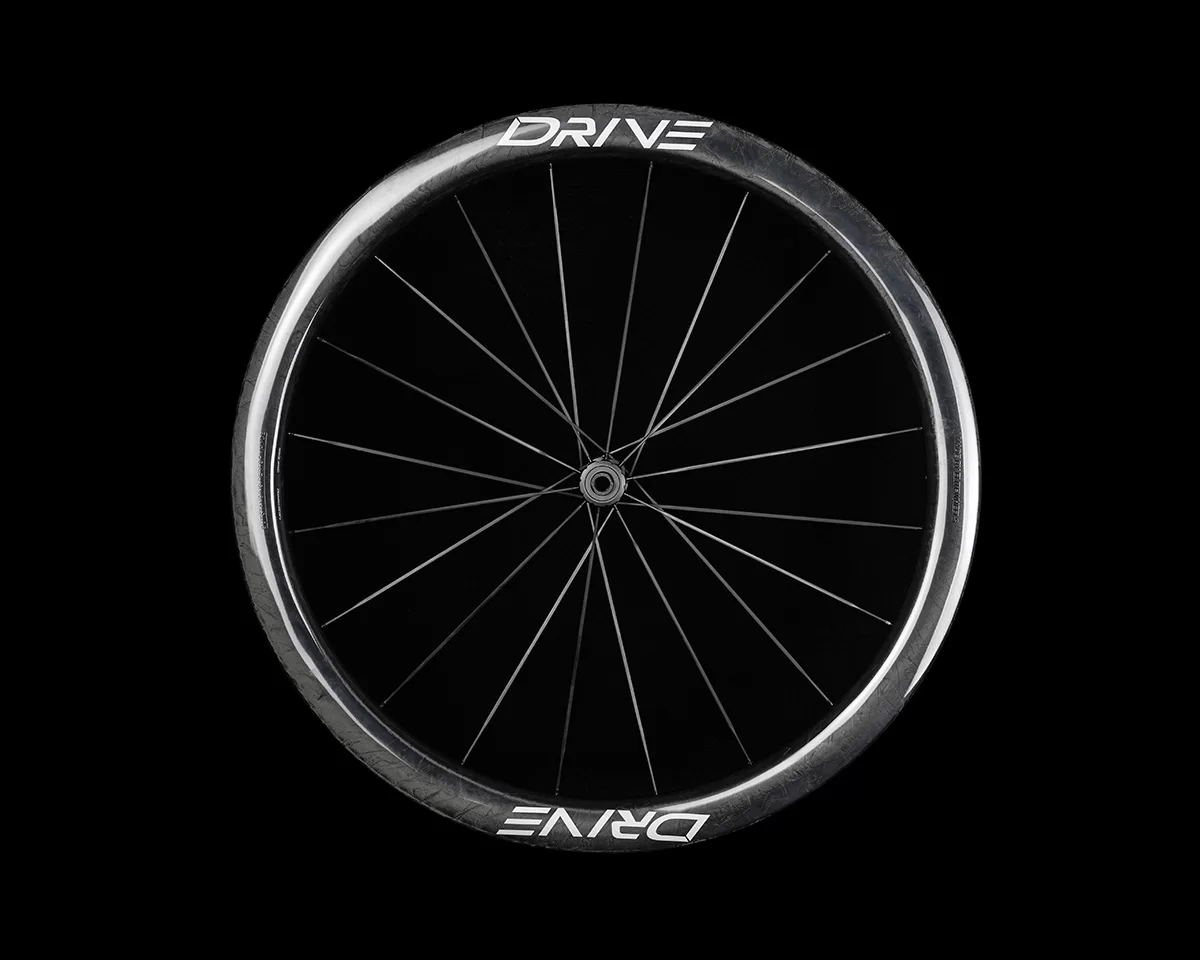

Drive G45 CS
RM3,900.00 – RM5,710.50

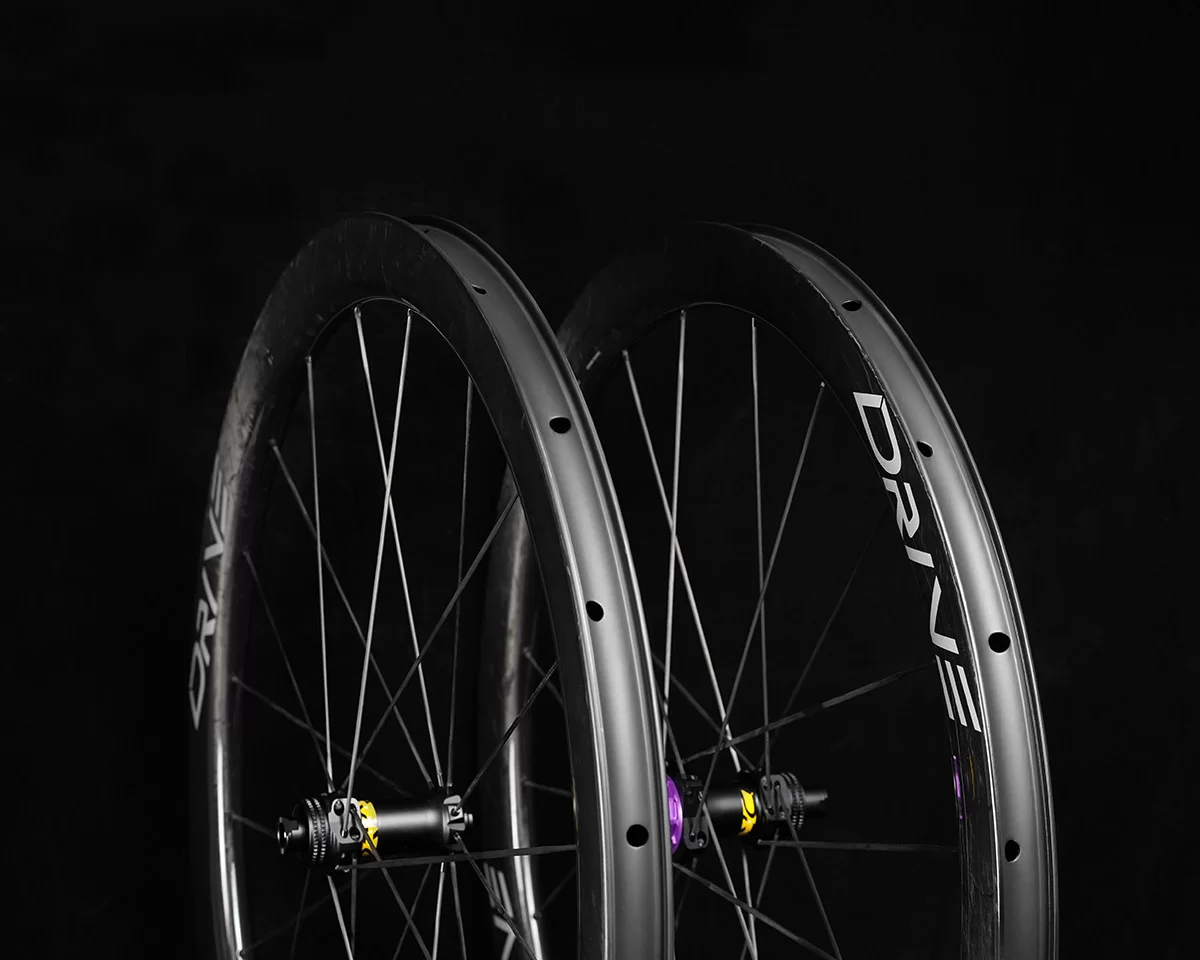

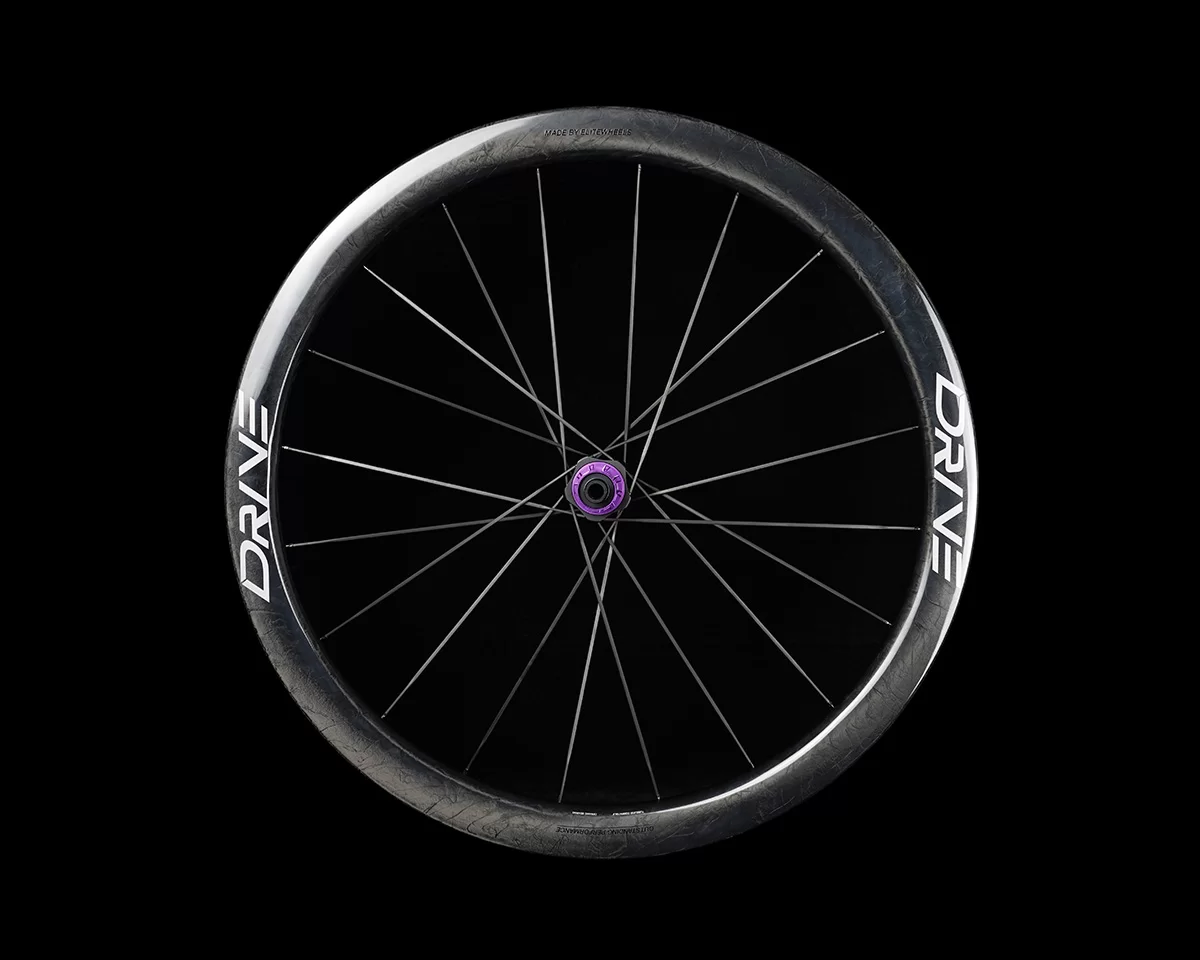

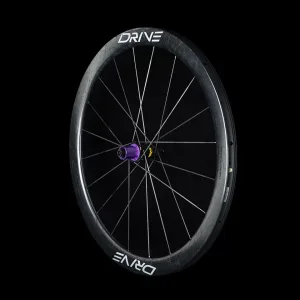

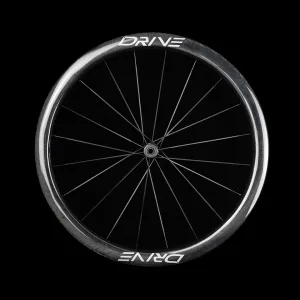

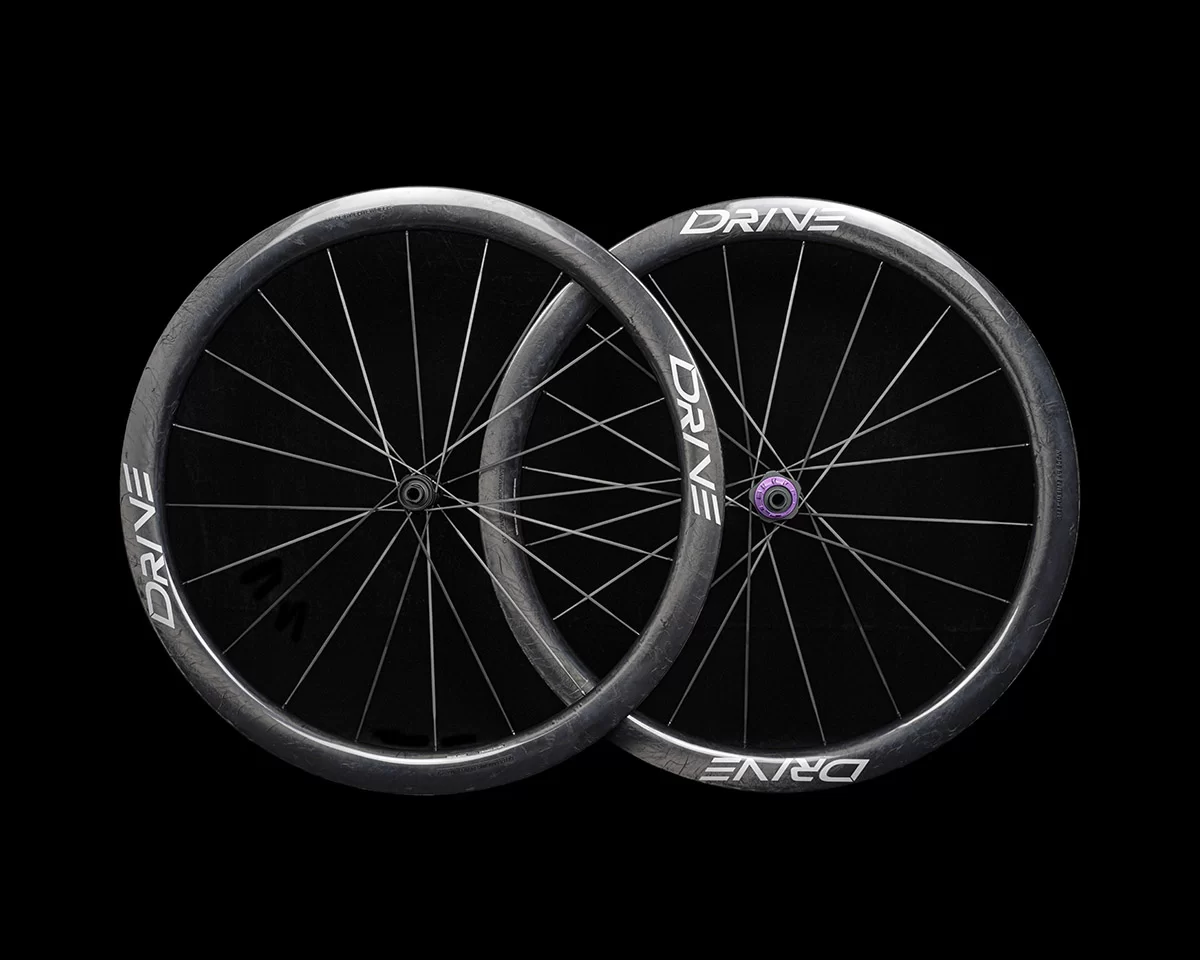

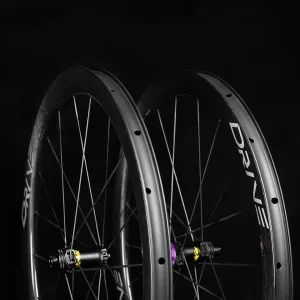

The G45 is a stiff, all-around wheelset for gravel riding. It is the first gravel wheelset available on the market that uses carbon spokes. The use of carbon spokes as well as UNI technology has allowed us to design a 1300g, 45mm deep wheelset.
Conveniently, carbon spokes have higher tensile strength and stiffness. When compared to steel spokes, carbon spokes have greater responsiveness and improved power transfer leading to improvements in braking, cornering, and acceleration.
– Carbon Spoke Wheelset
– Brake Interface: Center Lock by default
Specifications
| Rim | |
| Series | Drive |
| Wheel Size | 700c |
| Tire Compatibility | Clincher/ Tubeless |

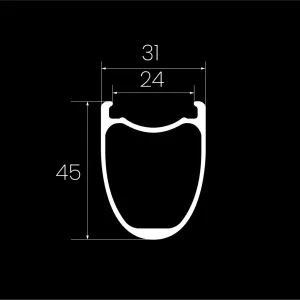

| Rim Depth | 45mm |
| Inner Width | 24mm |
| Outer Width | 31mm |
| Hub | |
| Front Hub Spacing | 12x100mm |
| Rear Hub Spacing | 12x142mm |
| Bearing | Ceramic |
| Brake Compatibility | Disc (Center Lock) |
| Freehub Type | 4 Pawls |
| Freehub Compatibility | Shimano / SRAM XDR / Campagnolo |
| Spoke | |
| Front Spoke Pattern | 2X/Radial |
| Rear Spoke Pattern | 2X/2X |
| Spoke Count | 20F/20R |
| Spoke Type | Carbon Spoke (3.2mm) |
| Nipple Type | Alloy Secure Lock |
| Other | |
| Rim Finish | Glossy Marbling Black |
| Extras | Rim Tape(Installed), Tubeless Valves(Installed), Spokes(4) |
| Weight (Pair) | 1300±30g (without tubeless valves and rim tape) |
| Rider Weight Limit | 285lbs/130kg |
| Recommended Tire Sizes | 700 x 30-50c |
| Certification | UCI Approved,CE Certified |

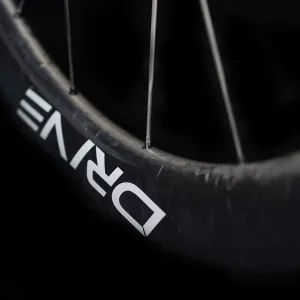

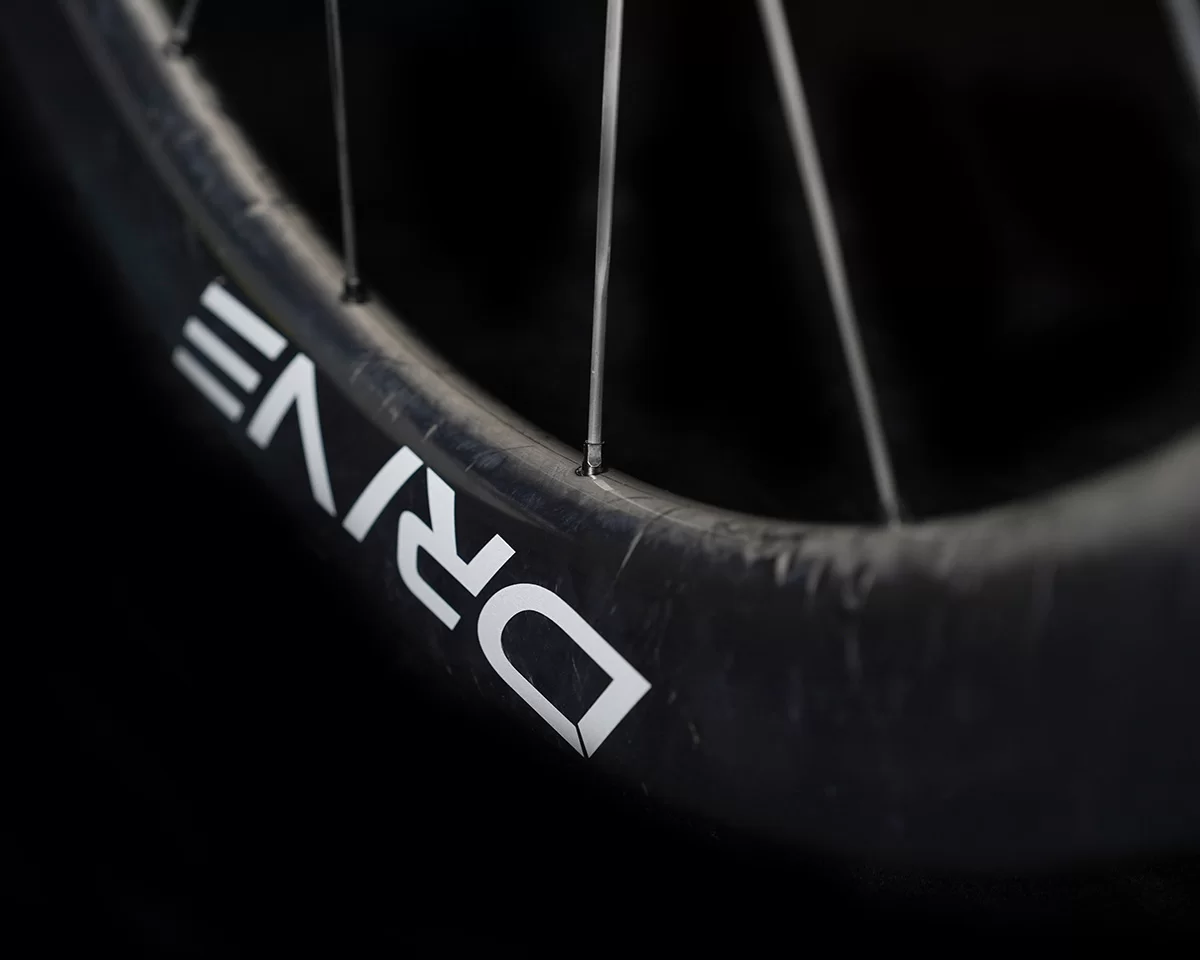

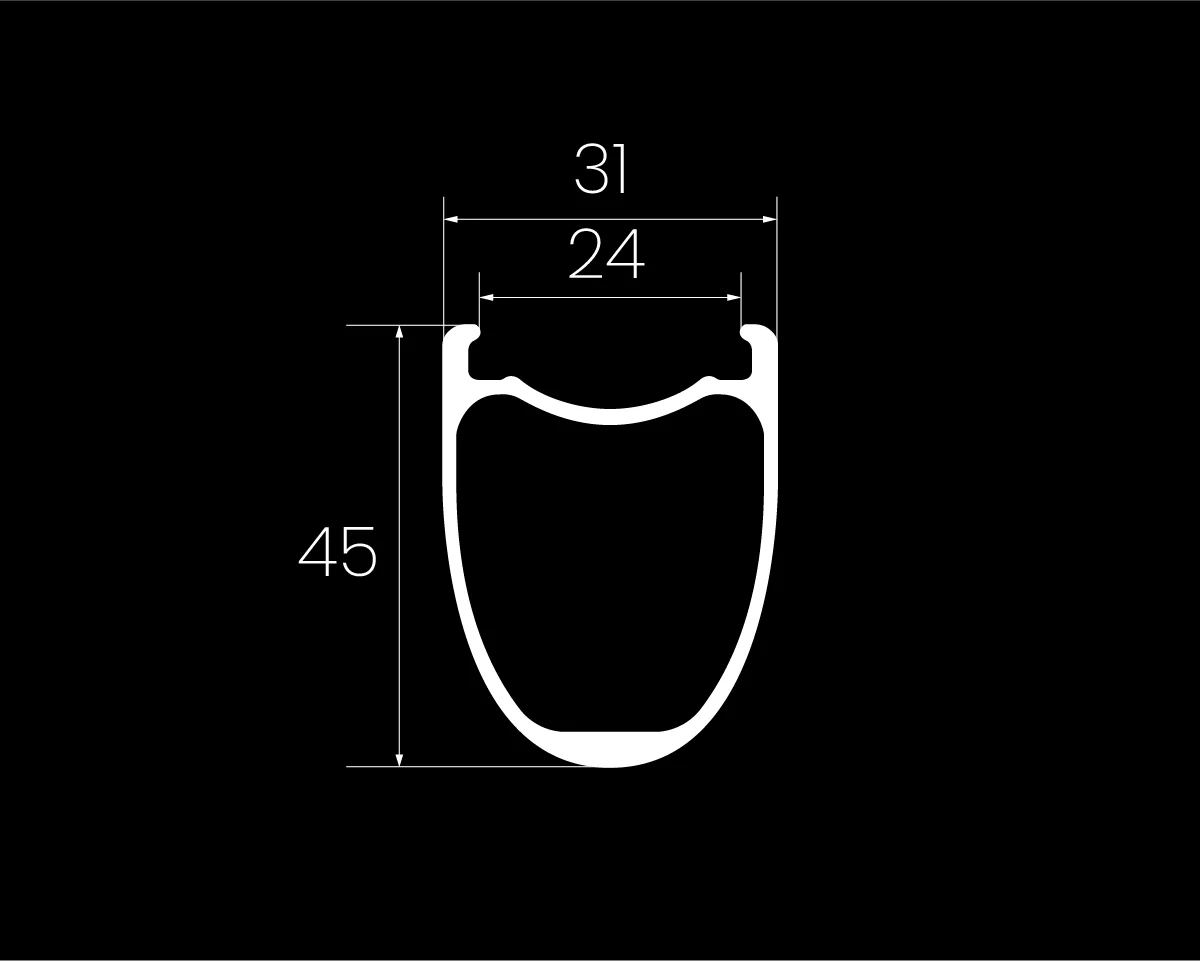

RIMS
Our innovative rim makes use of our unique UNI technology .
The Drive G45 CS wheelset uses a U-shaped rim which has the aerodynamic advantages of a road wheel. It’s 24mm inner rim width supports 700*30c-50c tires. This flexibility allows for road riding or trail riding. The G45 CS is truly a force to be reckoned with regardless of the riding you do. The glossy marble carbon fiber design gives the wheelset a unique and striking appearance.

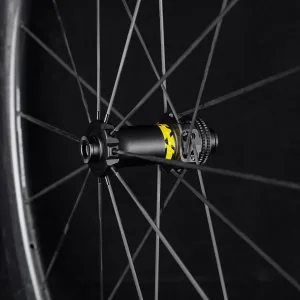

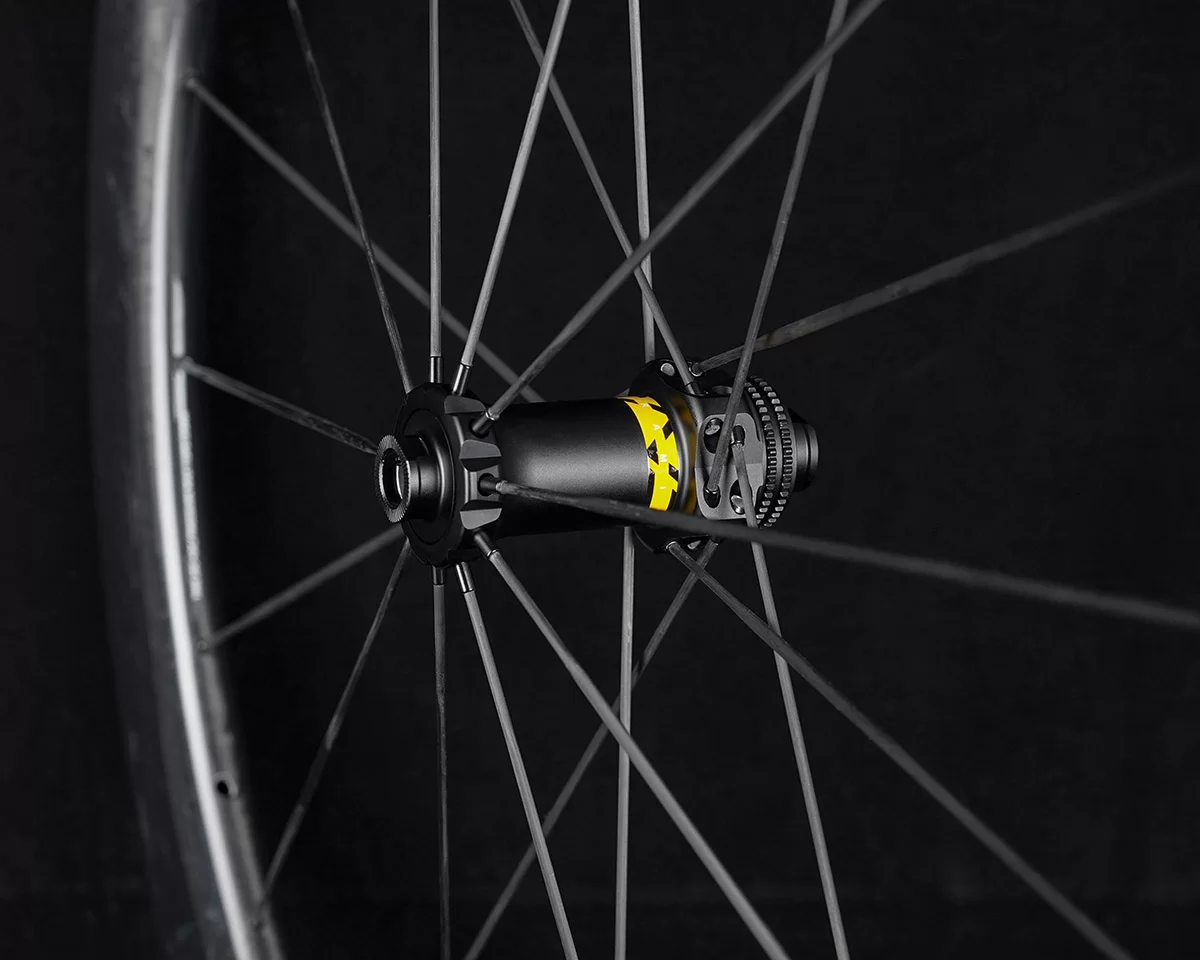

HUB
The Drive G45 CS wheelset includes a custom, high-end hub that uses a double-walled waterproof design. The hub flanges have been specifically designed to be simple and practical in form. This makes for easy cleaning of the hub after riding in muddy conditions.
As the hub uses premium ceramic bearings for less rolling resistance. Using these allows for a much longer service life as compared to steel bearings.

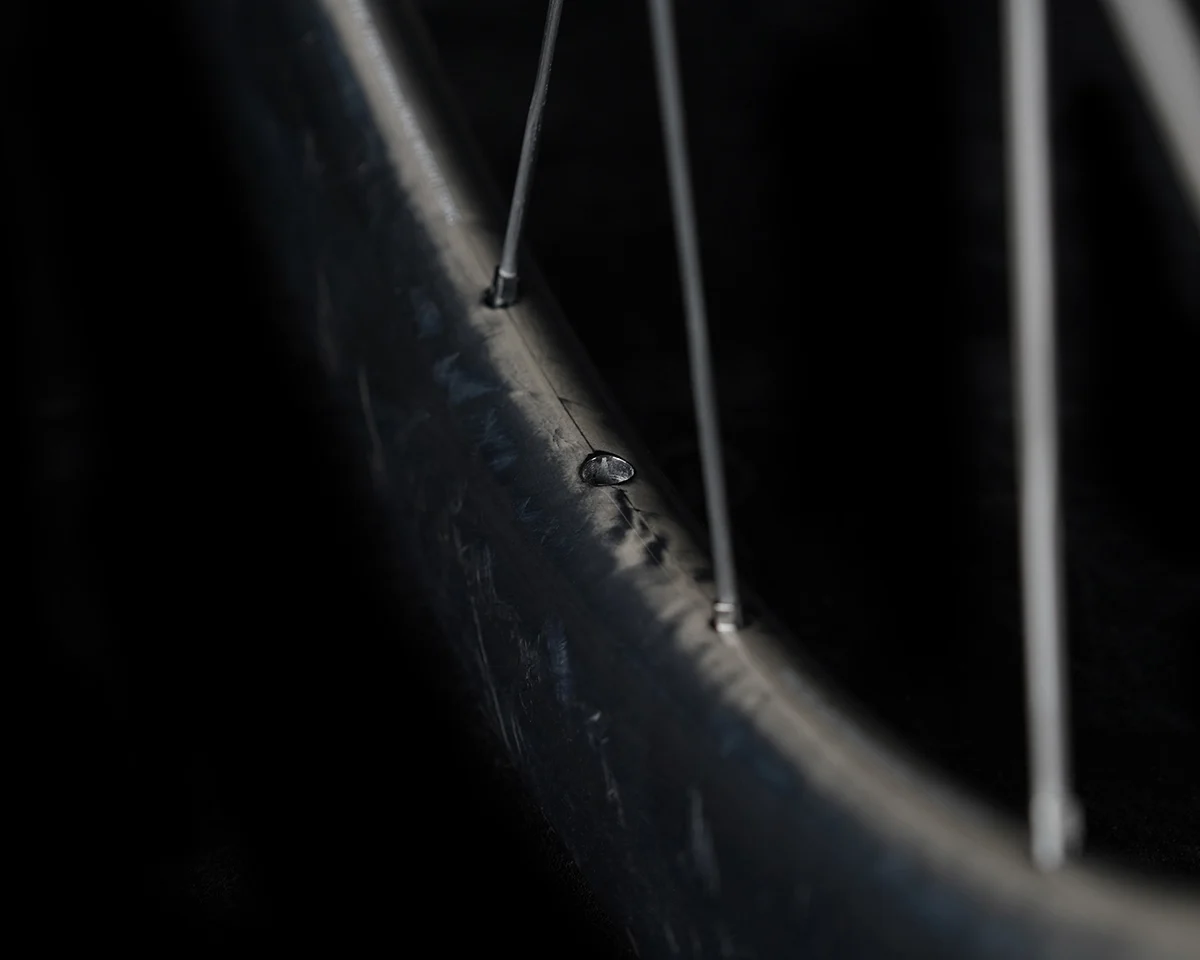

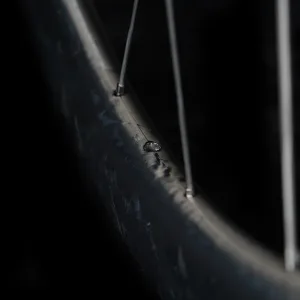

SPOKES
Drive G45 CS uses high modulus carbon fiber spokes. The wheels are 7% stiffer than a comparable wheelset using steel spokes. This difference in stiffness is immediately apparent when out for a ride. Carbon spokes are also three times more fatigue resistant than their steel counterparts. The loss of tension experienced riding steel spokes with long-term use can essentially be avoided.
DURABILITY
The wheelset has flawlessly passed our 20,000km rough surface factory/laboratory tests which simulate gravel riding conditions. This far exceeds the en17406 test standard.
| Freehub Type | CAMPAGNOLO N3W, Shimano HG, Shimano MSR, SRAM XDR |
|---|---|
| Color | Black, Light Silver |
