Drive Mixed Depth Rim Brake

Name: Drive Mixed Depth Rim Brake
SKU: 8946
Availability: InStock

RM5,260.50

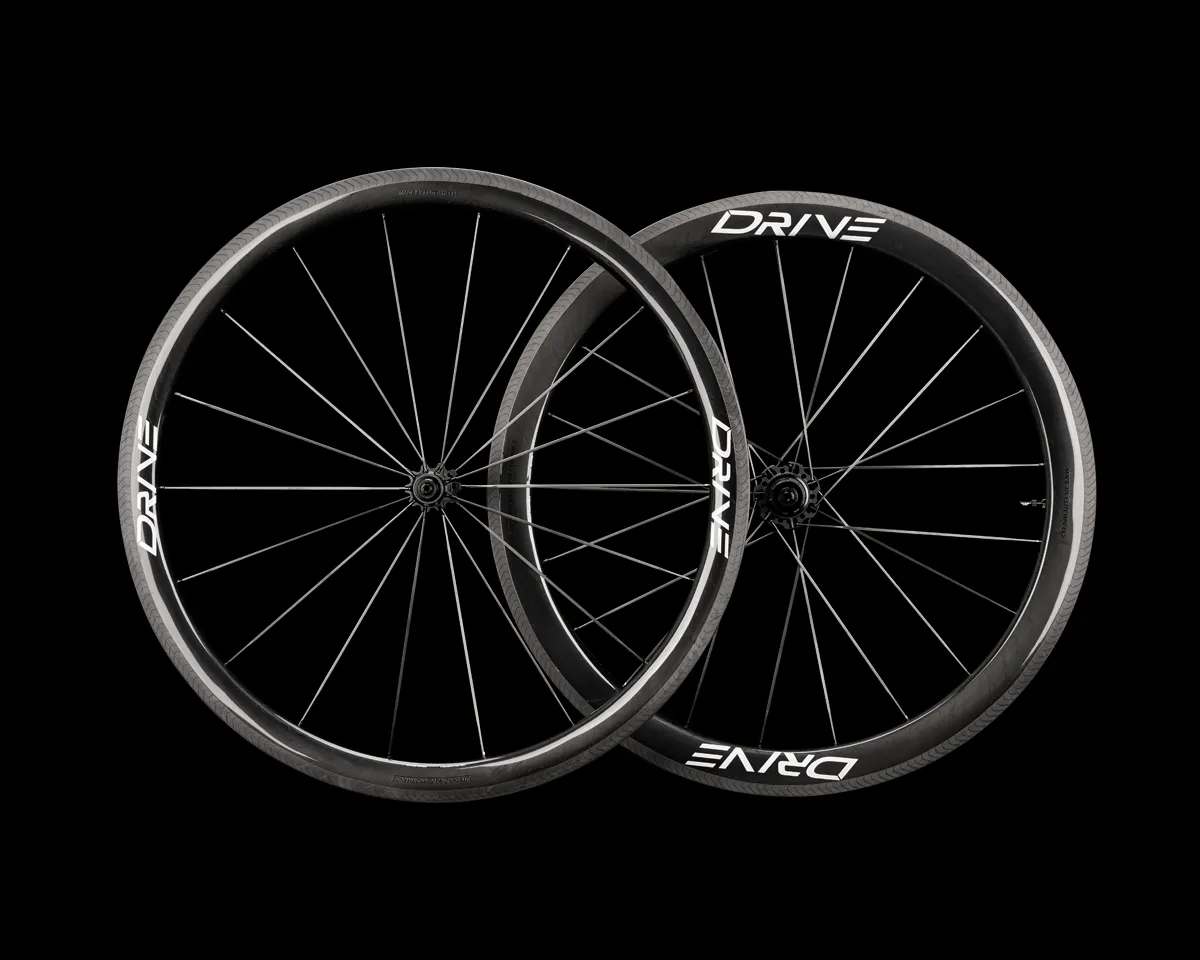

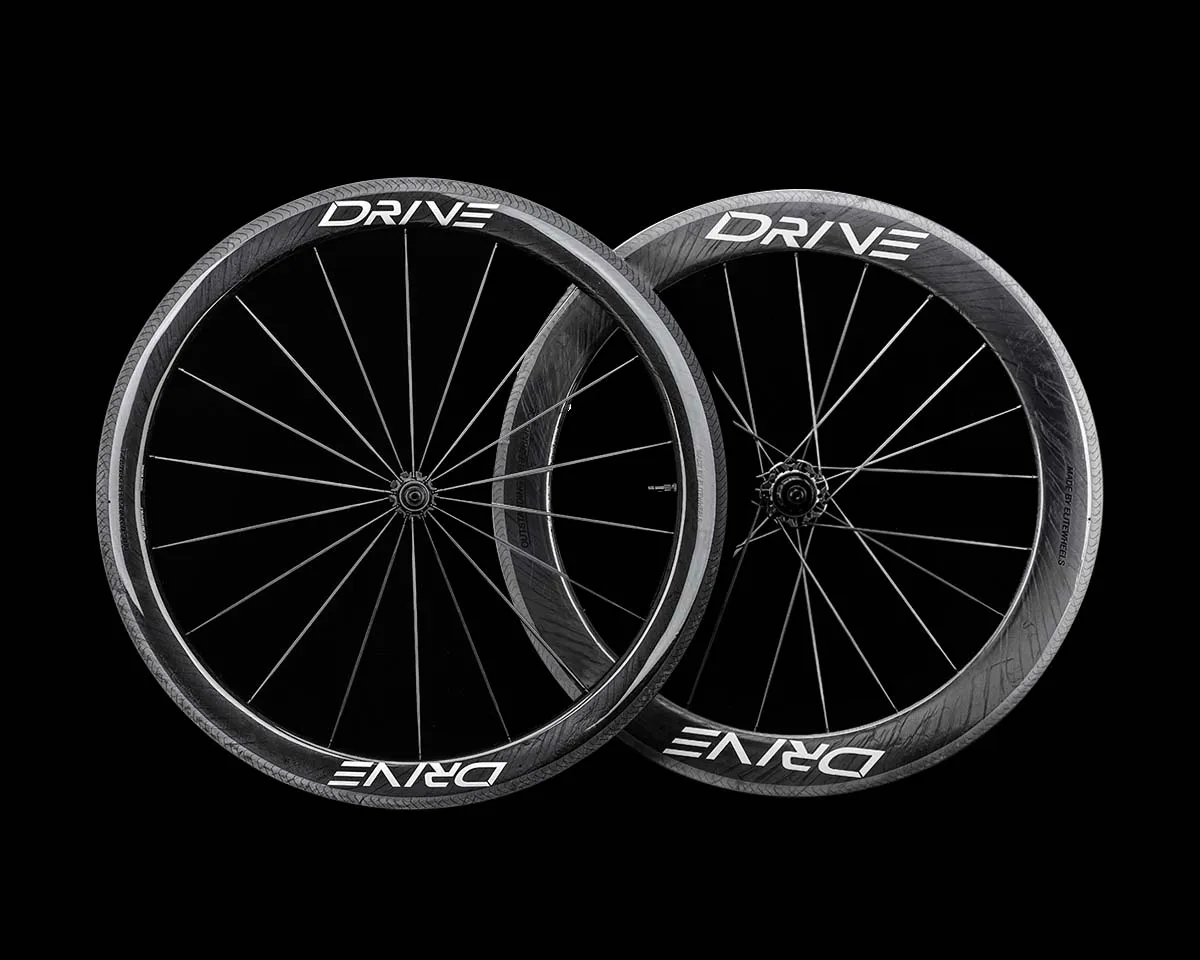

Having a mixed depth wheelset can improve the aerodynamics and handling of a bike. A shallower front wheel can make a bike easier to control as it is more resistant to crosswinds, while a deep section rear wheel can reduce aerodynamic drag. Mixed depth wheels are the favorite or many pro and experienced riders, as it can make for a more balanced ride.

Now we give riders the choice to customize their own wheelset, allowing for the front and rear wheel rim depths to be selected independently.

Note : It is recommended that you check with your frame and brake caliper brands for the maximum tire clearance.

Front Depth

Rear Depth

Freehub Type

Color

Clear

SKU: N/A

Categories: All, Road Wheels, Wheels

Specifications

Rim
Series	Drive
Wheel Size	700c
Tire Compatibility	Clincher/ Tubeless

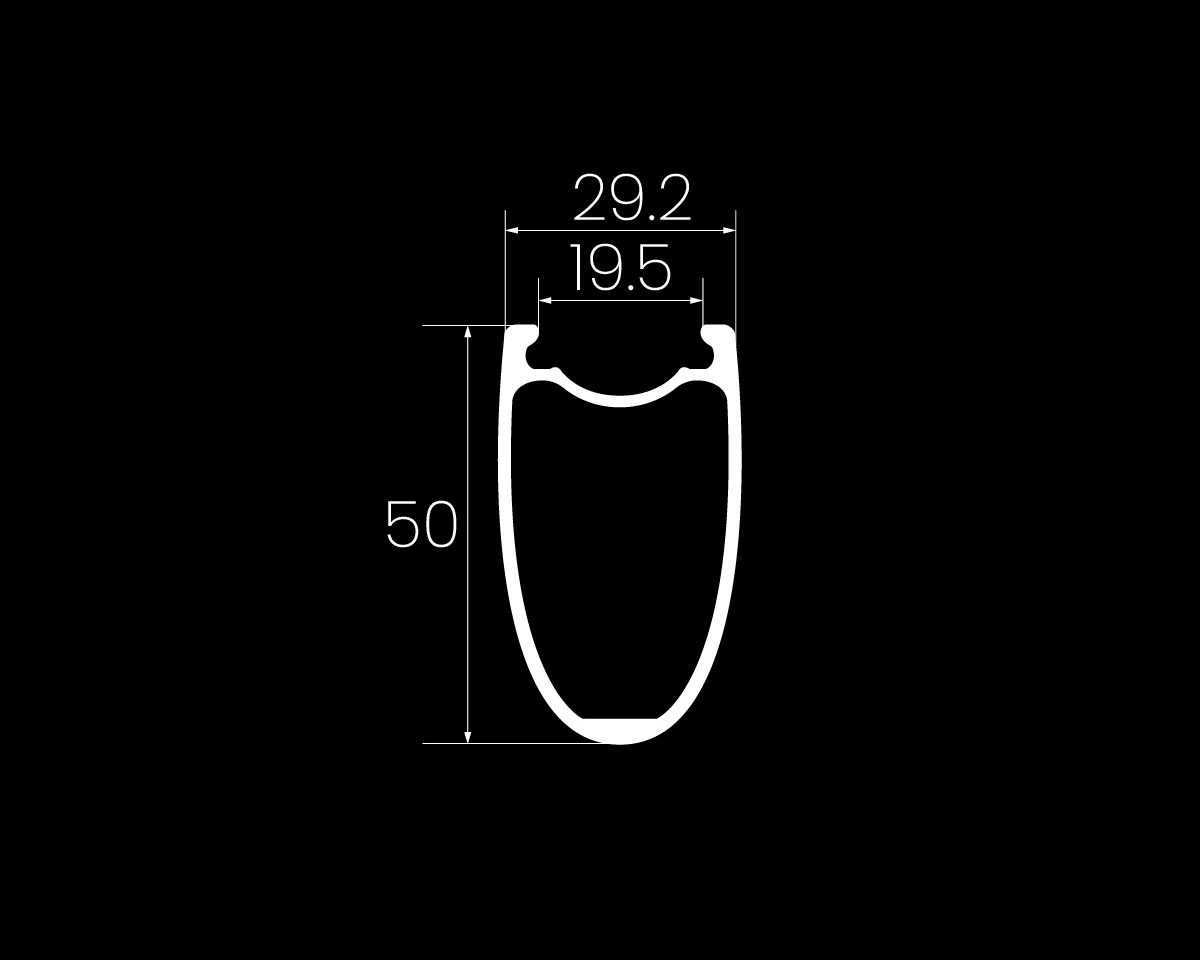

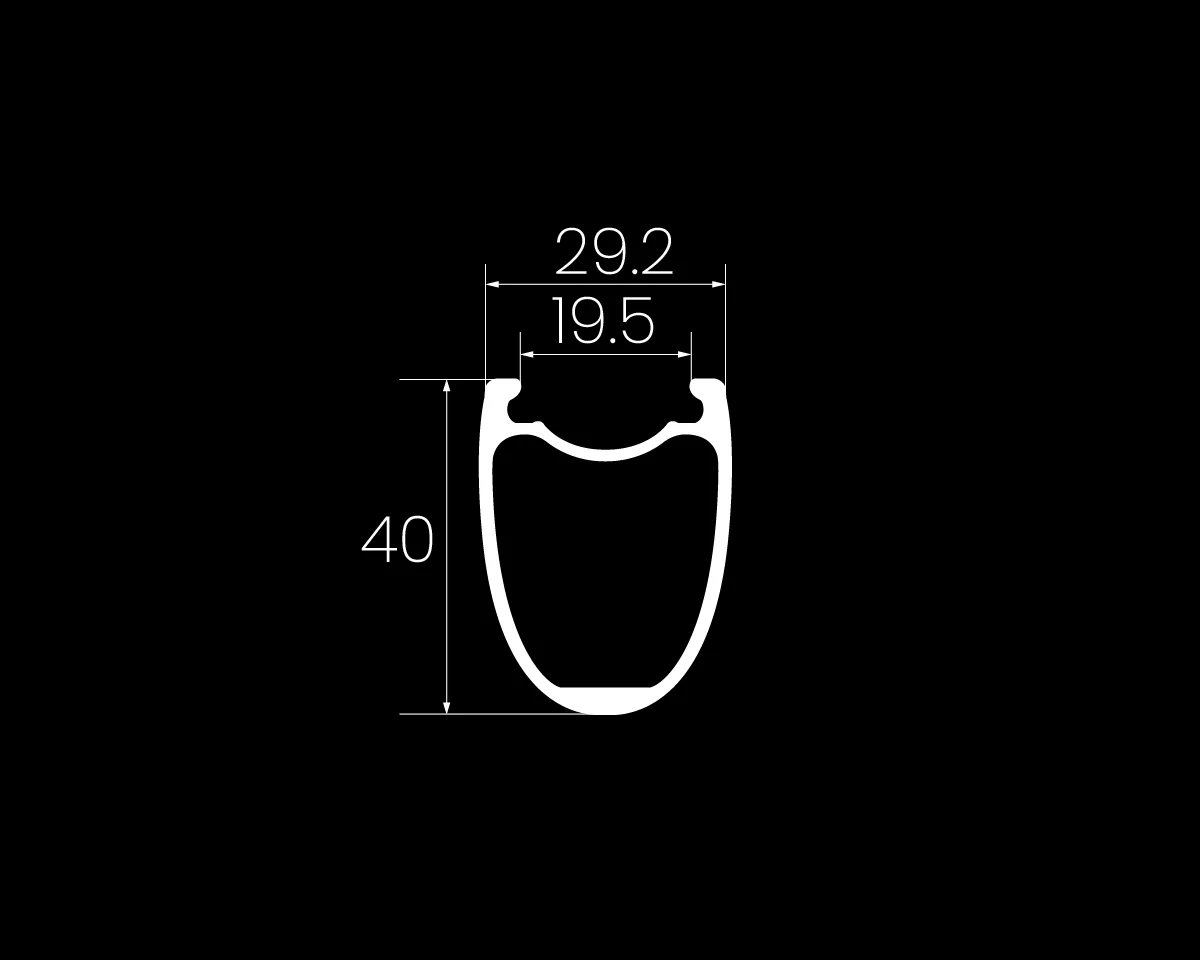

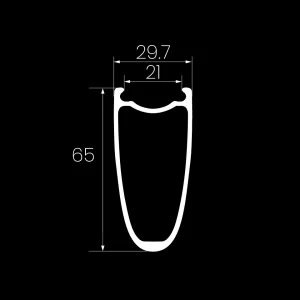

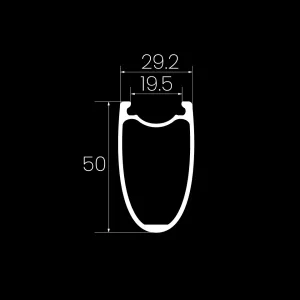

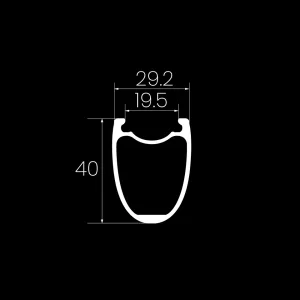

Rim Depth	Refer to Depth Options
Inner Width	Refer to FAQ
Outer Width	28mm

Hub
Front Hub Spacing	QR x 100mm
Rear Hub Spacing	QR x 130mm
Bearing	S&S Ceramic
Brake Compatibility	Rim Brake
Freehub Type	4 Pawls
Freehub Compatibility	Shimano / SRAM XDR / Campagnolo

Spoke
Front Spoke Pattern	Radial
Rear Spoke Pattern	2X/Radial (2:1)
Spoke Count	18F/21R
Spoke Type	Carbon Spoke (3.2mm)
Nipple Type	Alloy Secure Lock

Other
Weight(pair)	Refer to FAQ (without tubeless valves and rim tape)
Rim Finish	Glossy Marbling Black
Extras	Rim Tape(Installed), Tubeless Valves, Spokes(3), Quick Releases, Brake Pads(2 Sets)
Rider Weight Limit	275lbs/125kg
Recommended Tire Sizes	700 x 25-33C
Certification	UCI Approved,CE Certified

DRIVE RIMS

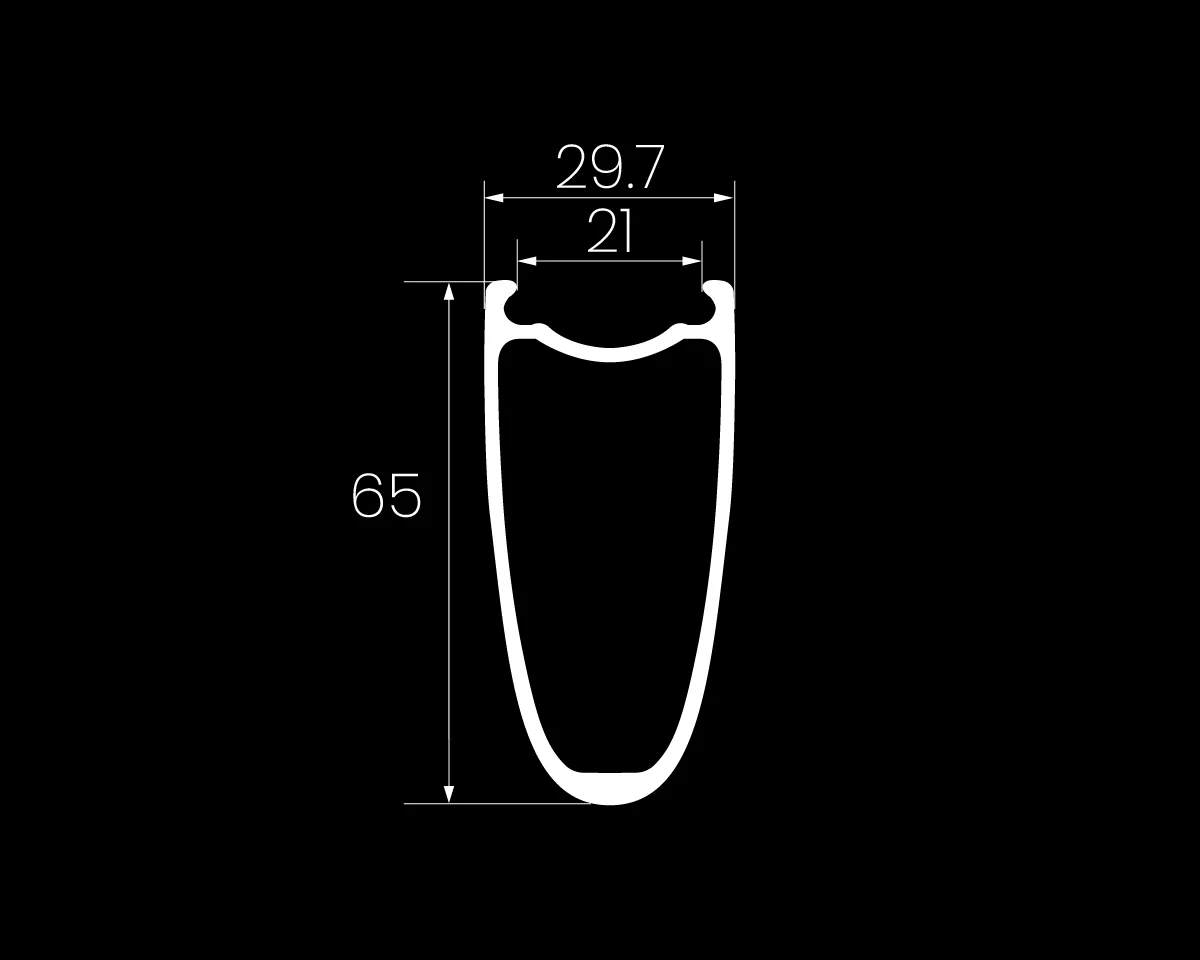

A Elitewheels, we design our Drive wheels to match the needs of professional riders. In order to deliver the best, we incorporate our own in-house UNI carbon fiber, a specific ratio of T700 and T800 carbon fiber, making it not only strong, but also especially light and stiff. The U/V-shaped rim profile of the Drive RB Mixed Depth wheels was chosen to make the rims aero as well as stable in windy conditions. The wheels are designed to accommodate up to 28c tires for those looking for more grip and comfort.

CARBON SPOKES

What separates Drive wheels from most others is its use of high-modulus carbon spokes. The 3.2mm wide aero bladed spokes offer a 7% increase lateral response as compared to equivalent steel spokes. The spokes are mechanically secured, giving the benefit of being able to be trued and maintained just like regular spokes. Anti-loosening technology is also incorporated into the spoke nipples. The threads built into the nipples give it a double-locking effect.

PERFORMANCE HUB

To get the most out of carbon fiber spokes, we specifically designed the hubs with high flanges to further increase lateral stiffness and improve handling. Elitewheels manufactures its own hubs with Fanuc CNC machines, allowing for a tolerance of 0.02mm. This accuracy is important for bearing longevity and low rolling resistance.

CERAMIC BEARINGS

The Drive front hub uses two 6803 mixed ceramic bearings. The Drive rear hub uses one 6903 and three 6803 mixed ceramic bearings. These large bearings offer better rigidity. The use of mixed ceramic bearings will allow you to have a more efficient bike, saving you precious watts.

BRAKE SURFACE

The Drive RB Mixed Depth uses a blend of 270 â„ƒ, high-temperature resin, developed by Elitewheels, and Japanese Toray T800 carbon fiber for the brake surface. This heat resistance ensures excellent braking performance even on long, steep descents. The brake track also features laser-etched grooves to clear water away, giving safe, consistent
