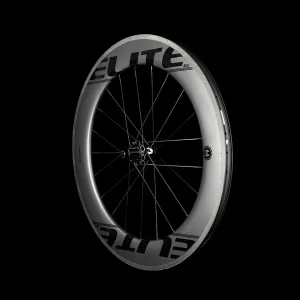

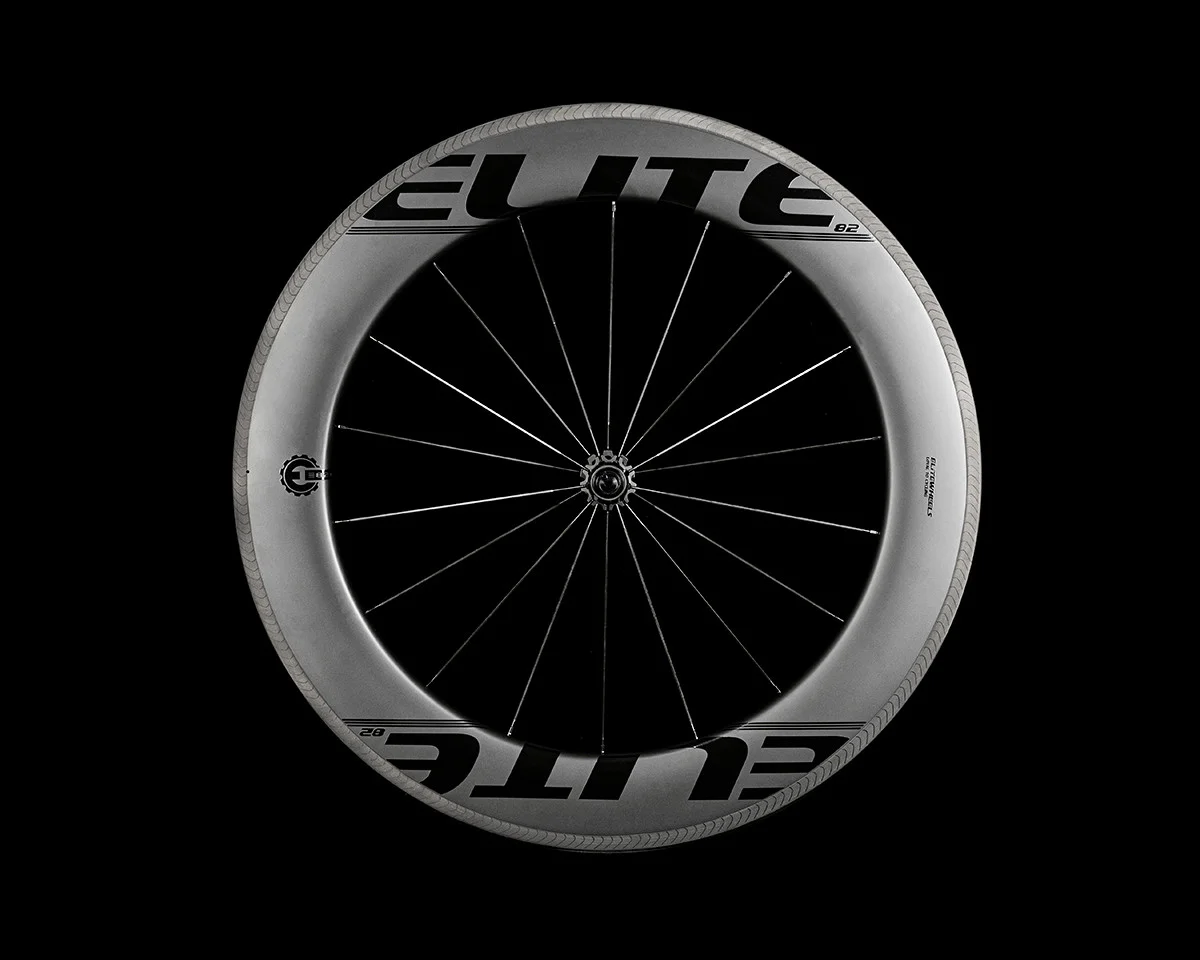

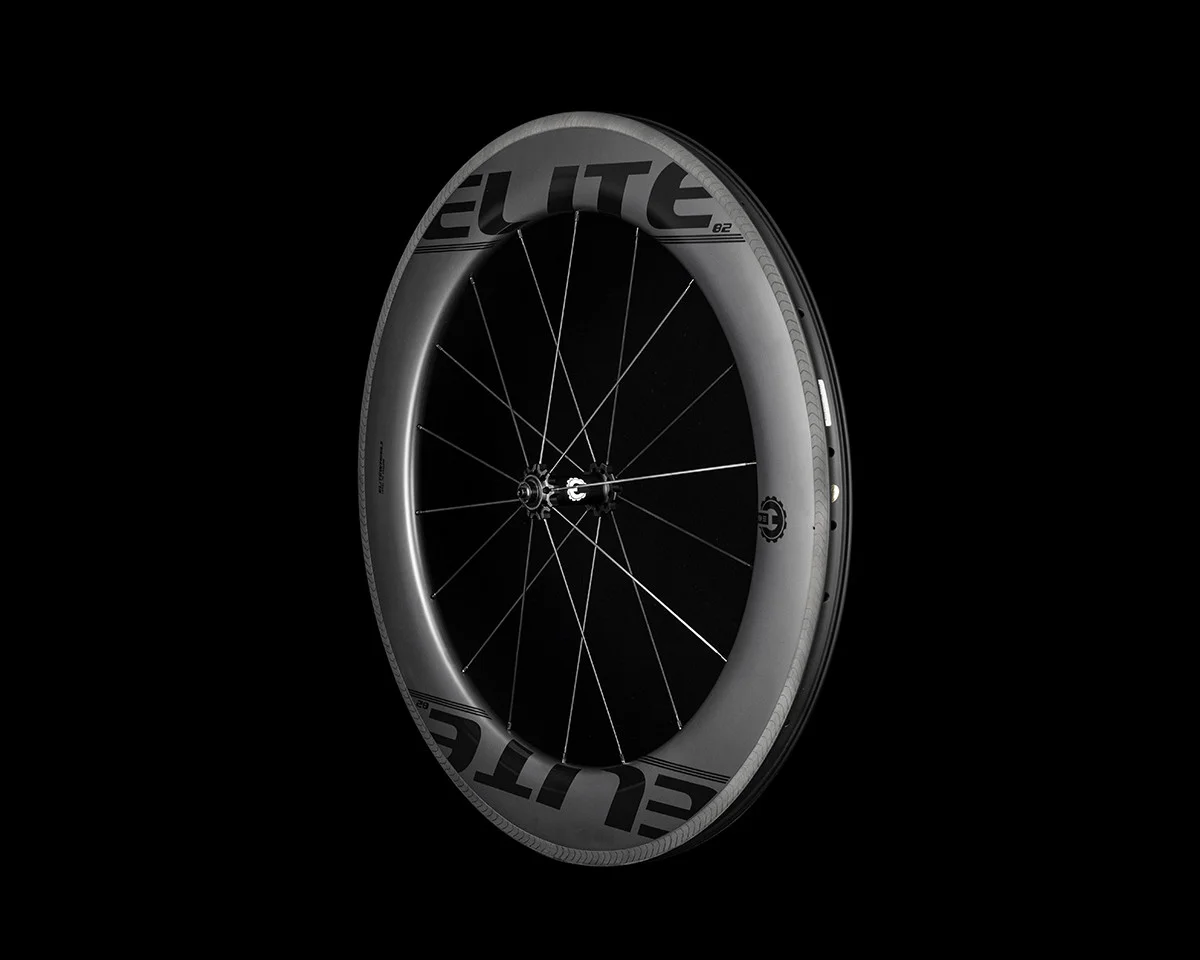

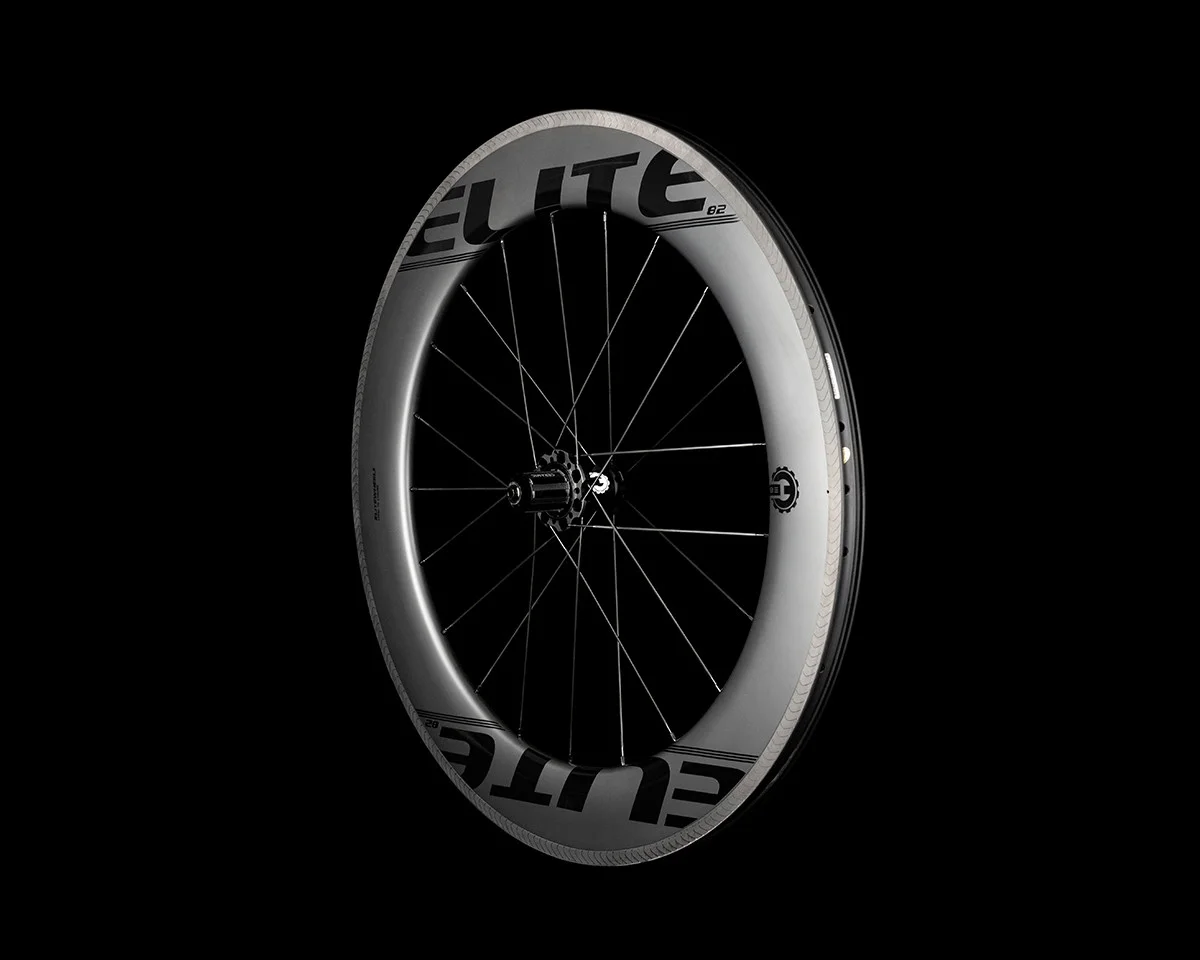

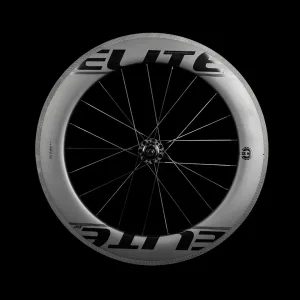

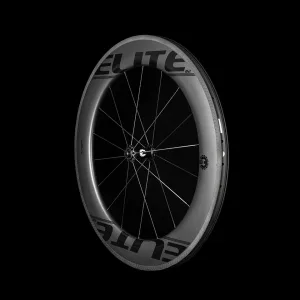

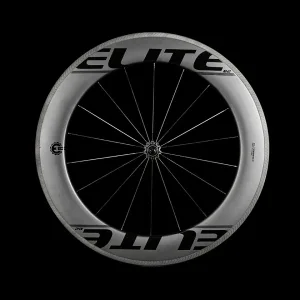

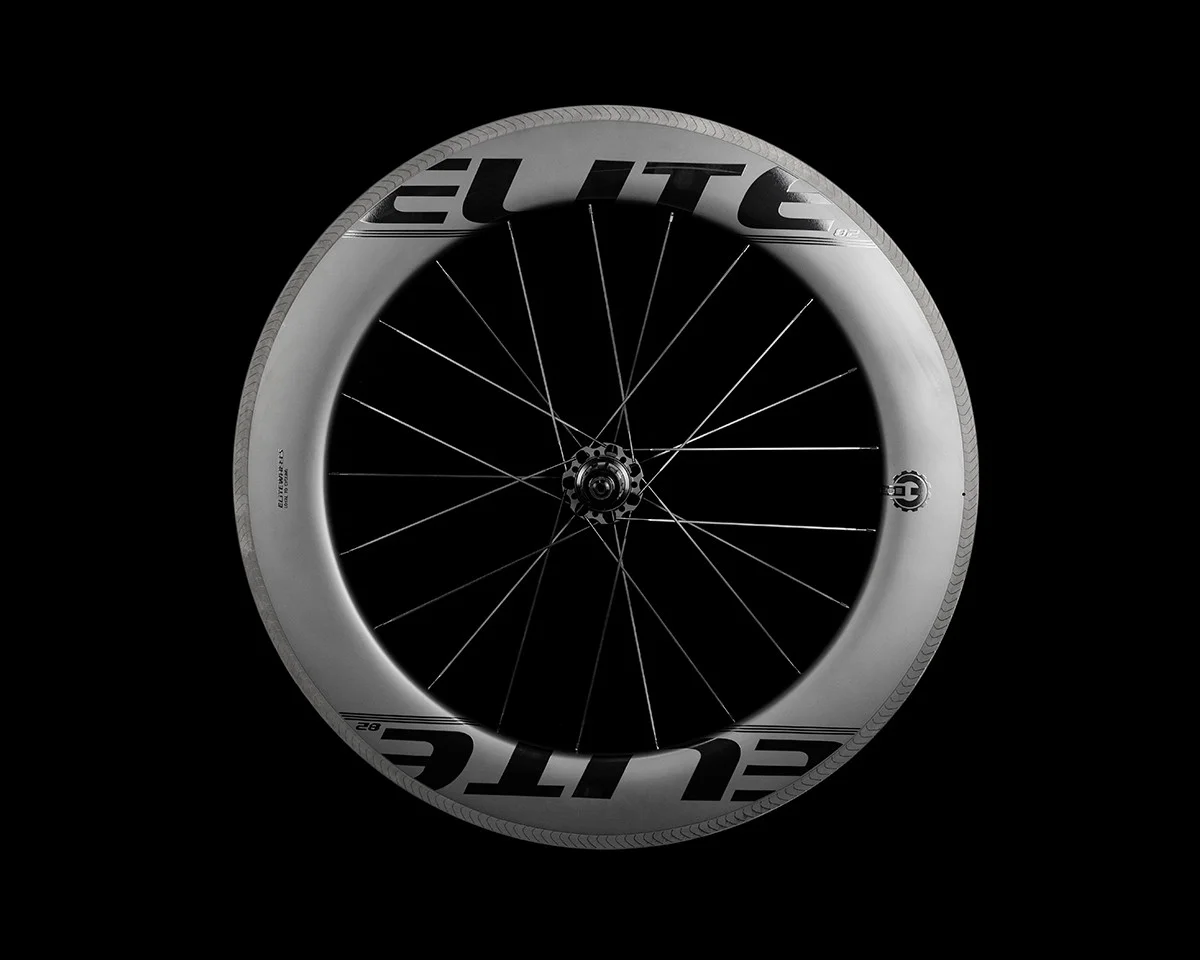

Marvel 82V Rim Brake

Name: Marvel 82V Rim Brake
SKU: 9025
Availability: InStock

RM2,785.50

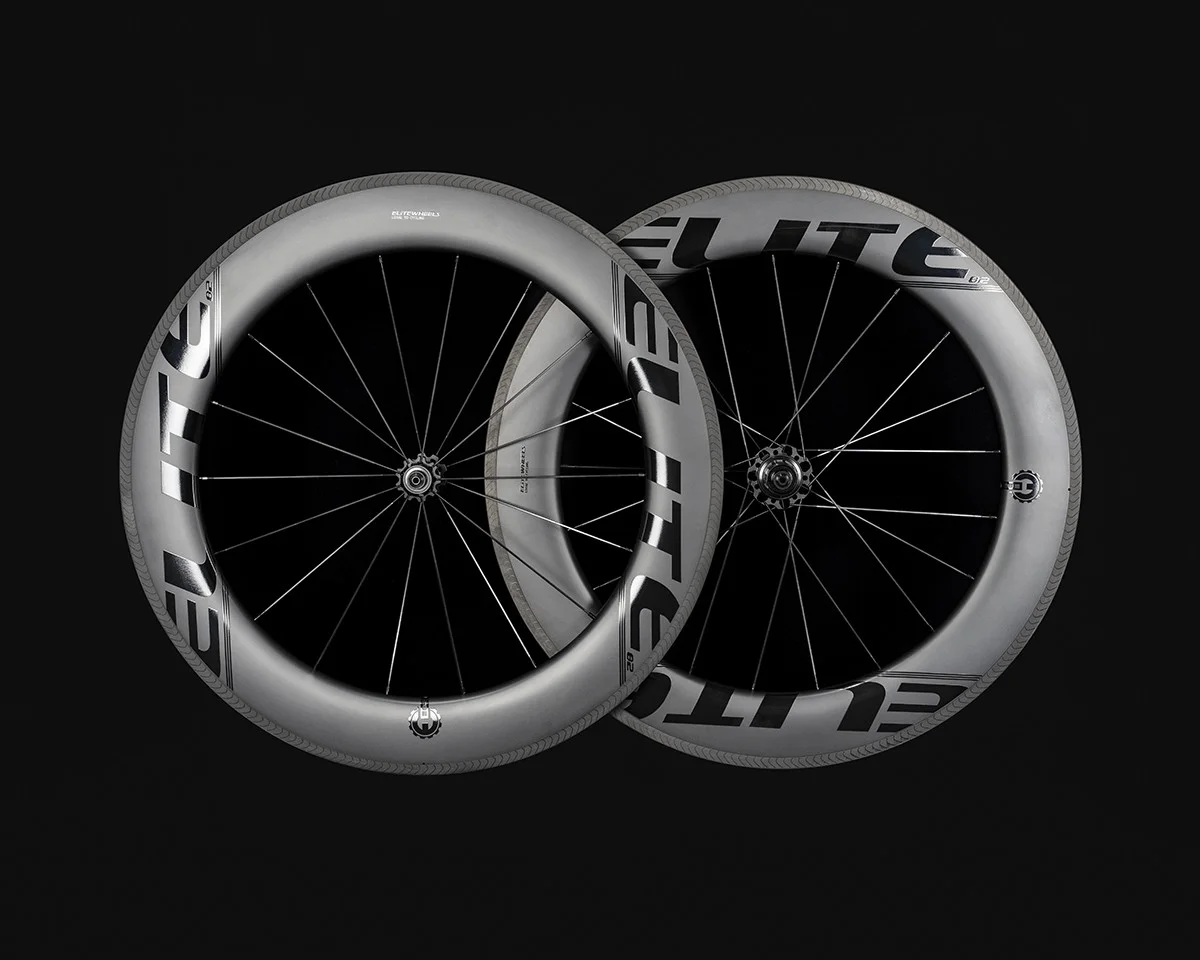

The Marvel 82V wheelset is designed for those who want an all-rounder that performs best on the flats, especially in time trials and triathlon races where every second counts. While they are our entry-level wheels, donâ€™t let that fool you. They are tried and tested and come with Pillar spokes and high-precision, ceramic bearing hubs. The wheelset has been aerodynamically optimized for 25-28mm tires and comes in at only 1873 grams for the pair.

*It is recommended that you check with your frame and brake caliper brands for maximum tire clearance.

*Availability Status:Â
On backorder, usually shipped in 20-30 days

Freehub Type

Color

Clear

SKU: N/A

Categories: All, Road Wheels, Wheels

Specifications

Rim
Series	Marvel
Wheel Size	700c
Tire Compatibility	Clincher/Tubeless

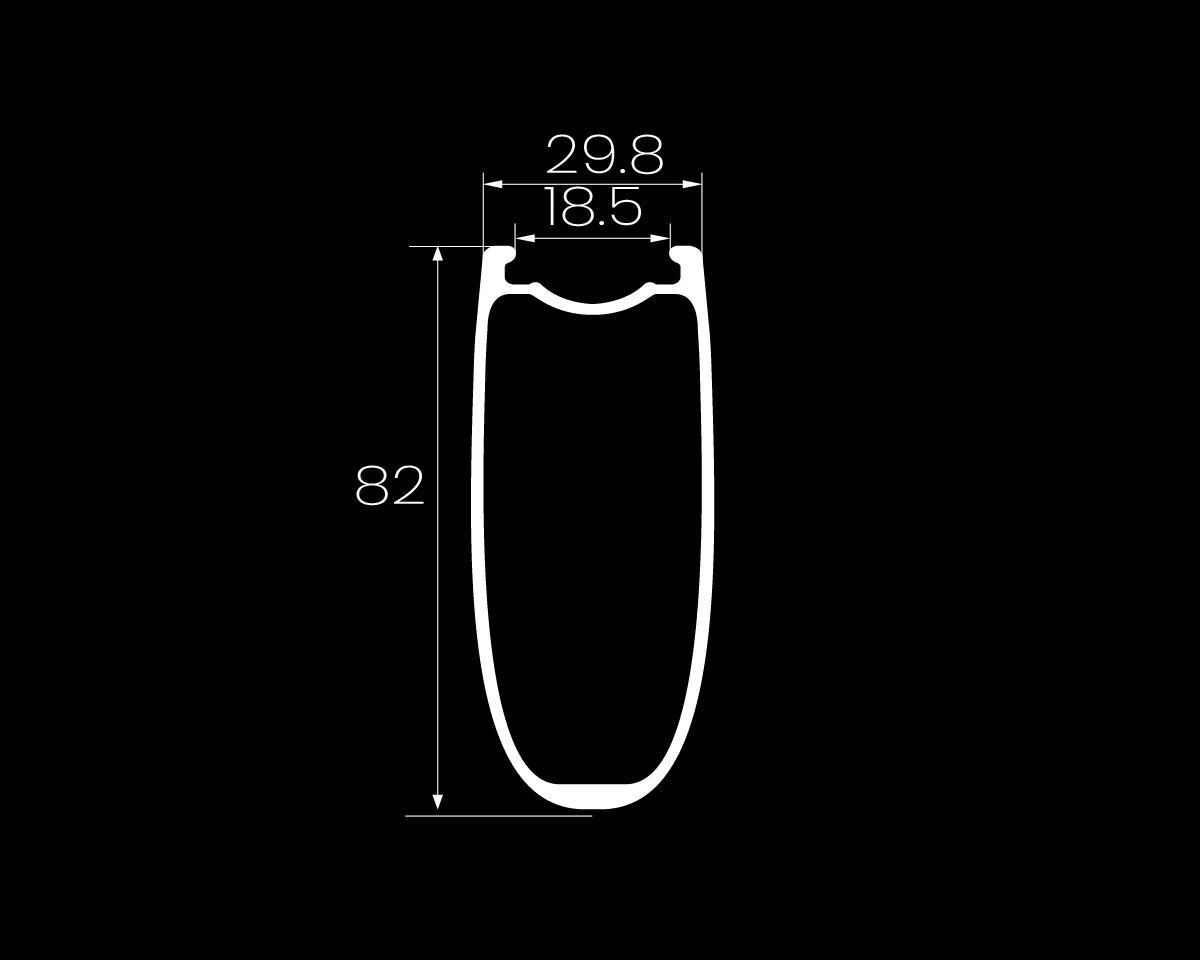

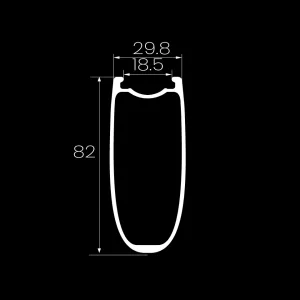

Rim Depth	82mm
Inner Width	18.5mm
Outer Width	28mm

Hub
Front Hub Spacing	QR x 100mm
Rear Hub Spacing	QR x 130mm
Bearing	S&S Ceramic
Brake Compatibility	Rim Brake
Freehub Type	4 pawls
Freehub Compatibility	Shimano / SRAM XDR / Campagnolo

Spoke
Front Spoke Pattern	Radial
Rear Spoke Pattern	2X/Radial (2:1)
Spoke Count	18F/21R
Spoke Type	Pillar PA 1423
Nipple Type	Sapim Secure Lock

Other
Rim Finish	UD
Weight(pair)	1873gÂ±30g (without tubeless valves and rim tape)
Extras	Rim Tape(Installed), Tubeless Valves, Quick Releases, Brake Pads(2 Sets)
Rider Weight Limit	285lbs/130kg
Recommended Tire Sizes	700 x 23-33C
Max Tire Pressure	120psi
Certification	CE Certified

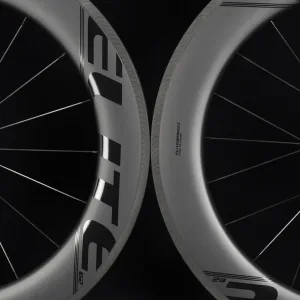

RIMS

At Elitewheels, we design our Marvel wheels to match the needs of recreational cyclists. As opposed to alloy rims found on most road bikes, Marvel wheels are stronger, stiffer, much more more aerodynamic and significantly lighter. In fact, wheels play the biggest role in aerodynamics on a bicycle. As opposed to reducing weight elsewhere, a lighter rim saves rotational weight, making for a more agile feel and faster accelerations.

SPOKES

Choosing the right spoke to build a wheel is essential. We specifically selected Pillar PA 1423 aero bladed spokes. They are cold forged making them strong, allowing them to be able to withstand over 300kgf of tension.

PERFORMANCE HUB

To get the most out of this carbon wheelset, we specifically designed the hub with high flanges to further increase lateral stiffness and improve handling. Elitewheels manufactures its own high precision hubsÂ with Fanuc CNC machines, which can machine to tolerances of just 0.02mm. This not only allows for lower rolling resistance but also increases bearing longevity.

CERAMIC BEARINGS

The Marvel 82Vâ€™s front hub uses two 6803 mixed ceramic bearings. The rear hub uses one 6903 and three 6803 mixed ceramic bearings. These large bearings offer better durability over standard size ones. The use of large mixed ceramic bearings will allow you to have a more efficient bike, saving you precious watts.
Read more about ceramic bearings.

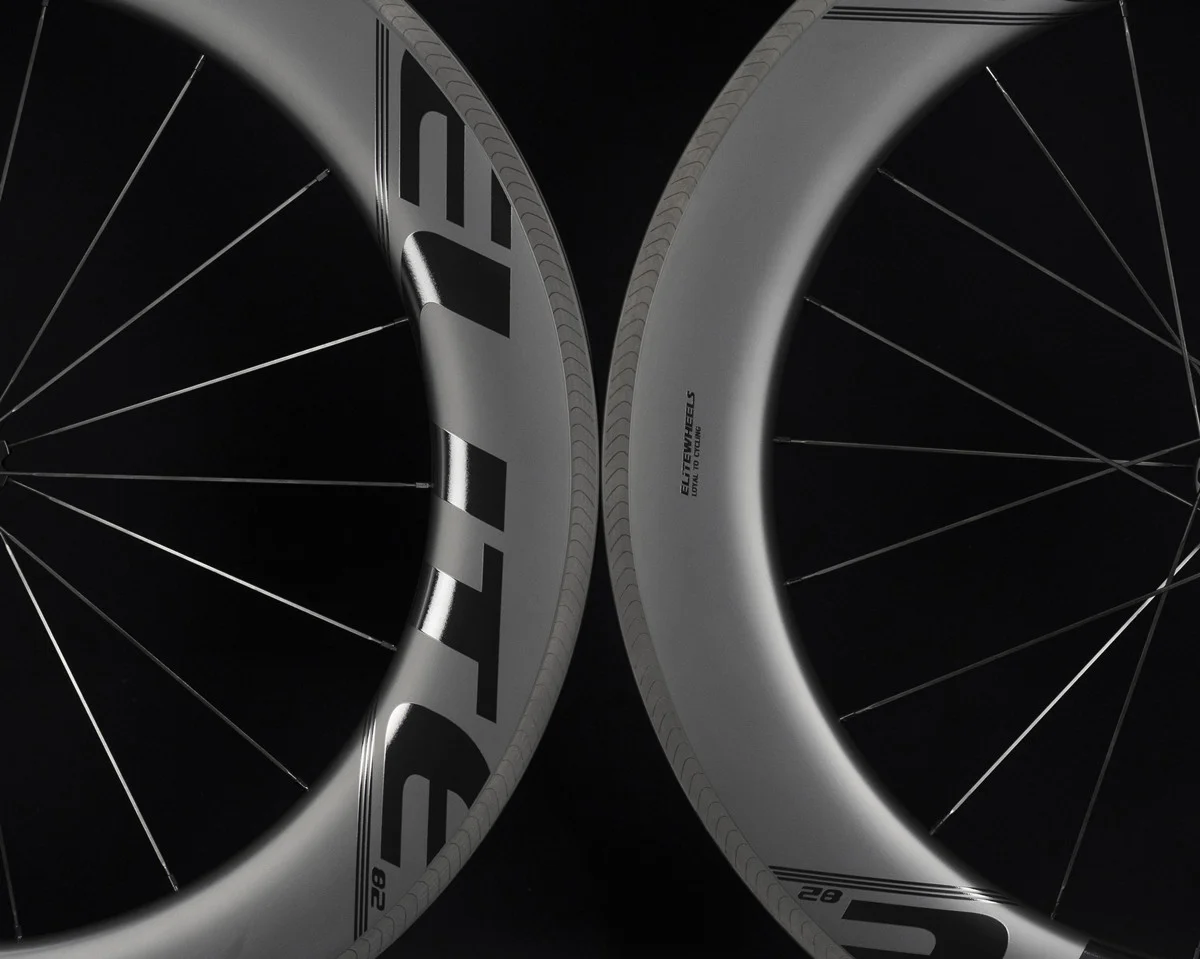

BRAKE SURFACE

The Marvel 82V uses a blend of 270 â„ƒ, high-temperature resin,Â developed by Elitewheels,Â and JapaneseÂ Toray T800 carbon fiber for the brakeÂ surface. ThisÂ heat resistance ensuresÂ excellent braking performance even on long, steep descents. The brake track also featuresÂ laser-etched grooves to clear waterÂ away, giving safe, consistent braking in wet conditions.

TUBELESS IN MIND

All of our wheels are tubeless ready with tubeless rim tape pre-installed. Each rim features our unique tubeless R-angle design, allowing for easier mounting. To make mounting tubeless tires even easier, rims are designed with bead seat retention ridges making inflation possible with just a floor pump.
