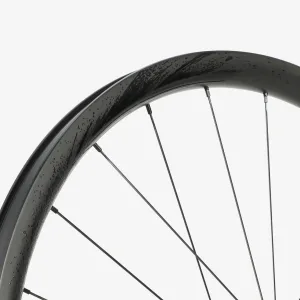

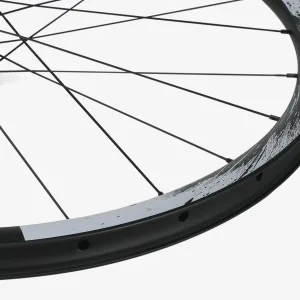

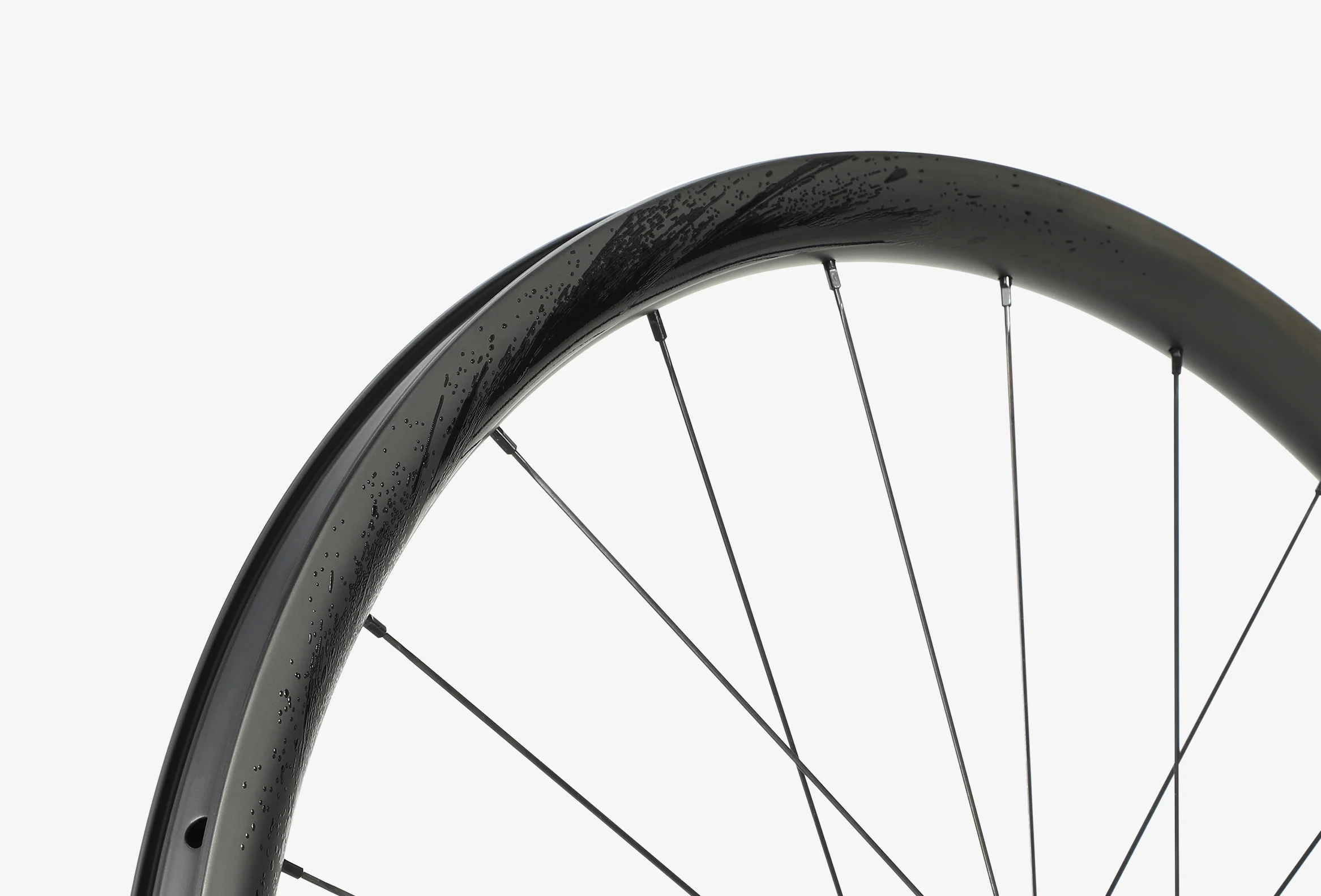

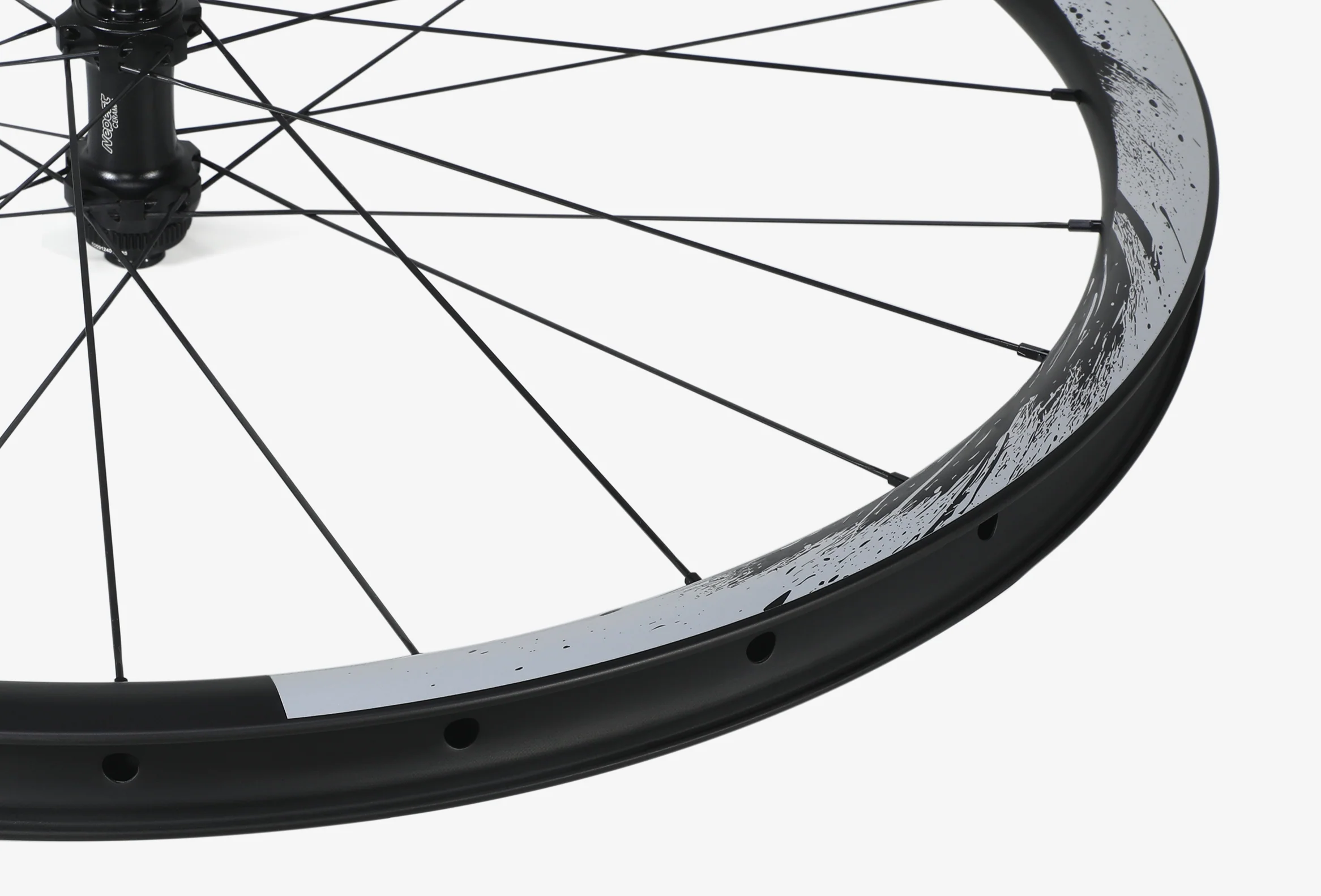

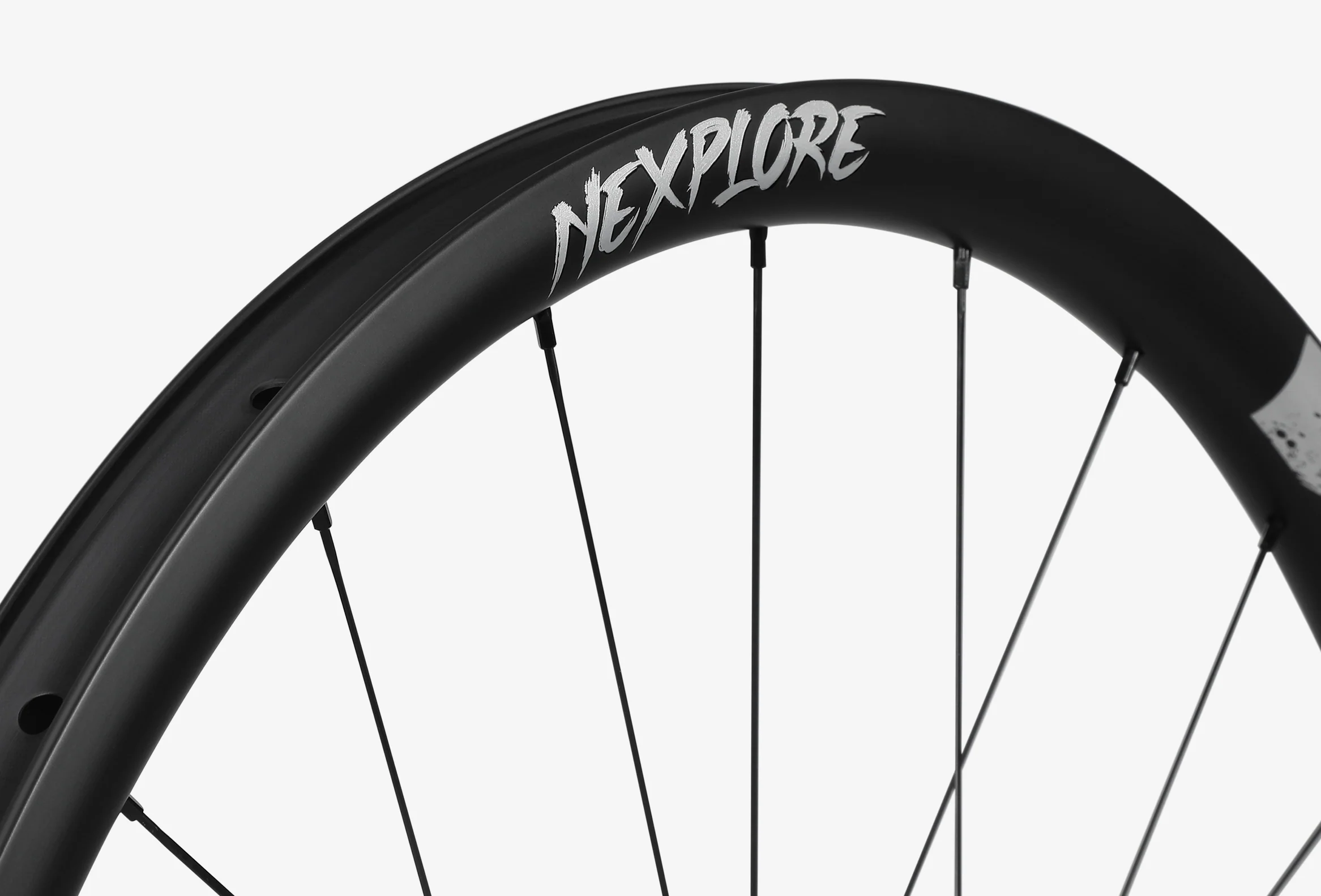

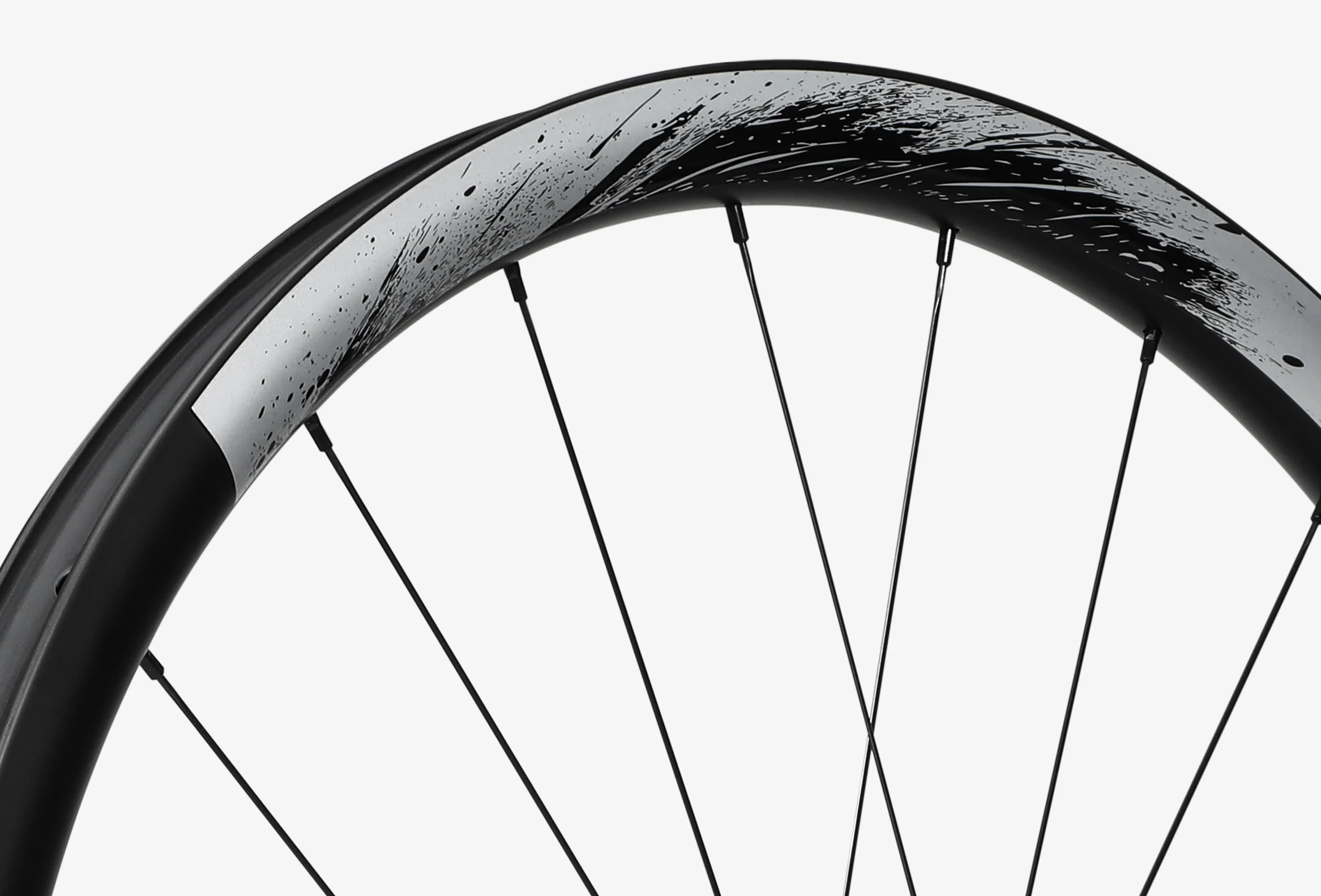

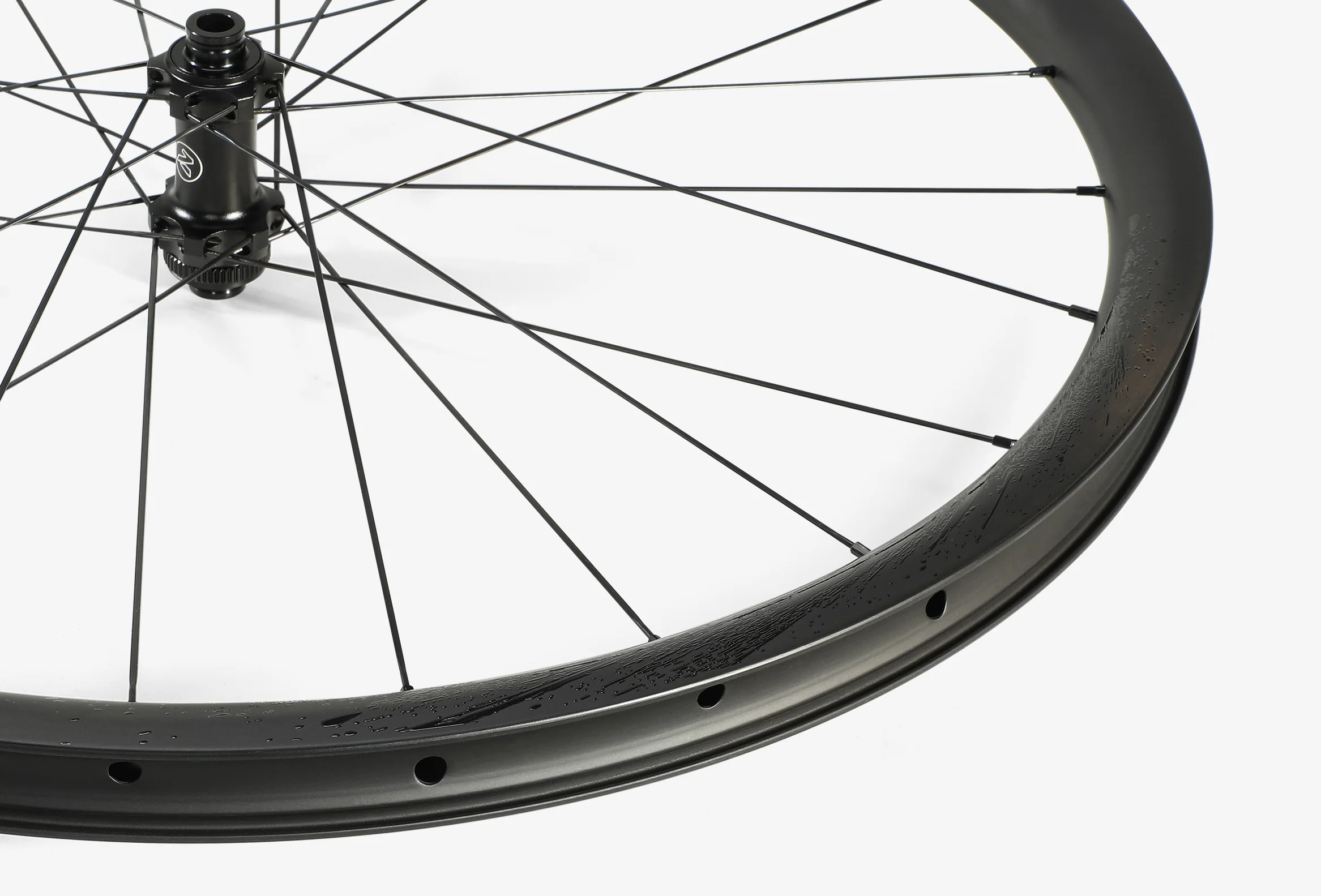

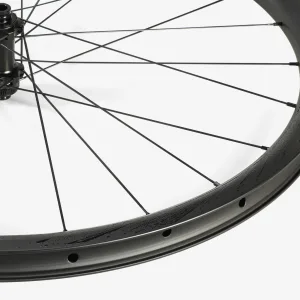

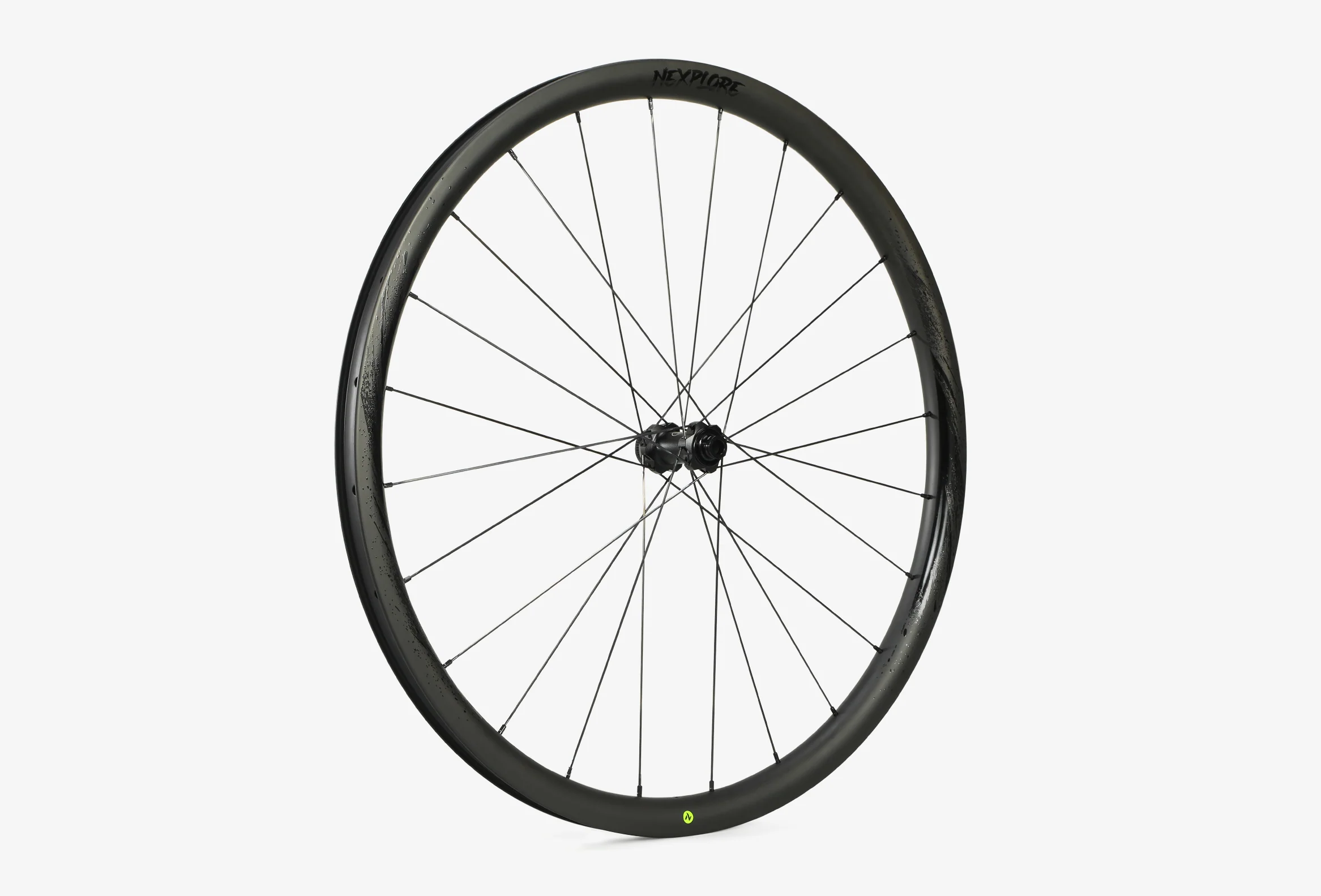

Special U Shape Design Rims

U shape design wider rims to accommodate wider tires(28-50C), enhancing stability and traction on diverse surfaces.

Material

Toray T800 Carbon

Front/Rear Hub

NP-G01

Width

25mm(IN)/34mm(EX)

Axles

Front:12*100
Rear:12*142

Depth

30mm/40mm

Center Lock

Yes

Weight

1330 +/- 30g
1385 +/- 30g

Spokes

Sapim CX Ray

Other Info:

Recommended Tire Width: 28-50C
Tube Compatibility: Presta
Rider Weight Limit: 275lbs /125kg
Recommend Tire Pressure: 80-120 psi (Clincher) / 60-80 psi(Tubeless)

Toray T800 Carbon

Better Material

Toray T800 carbon fiber is lightweight yet robust and stiff.

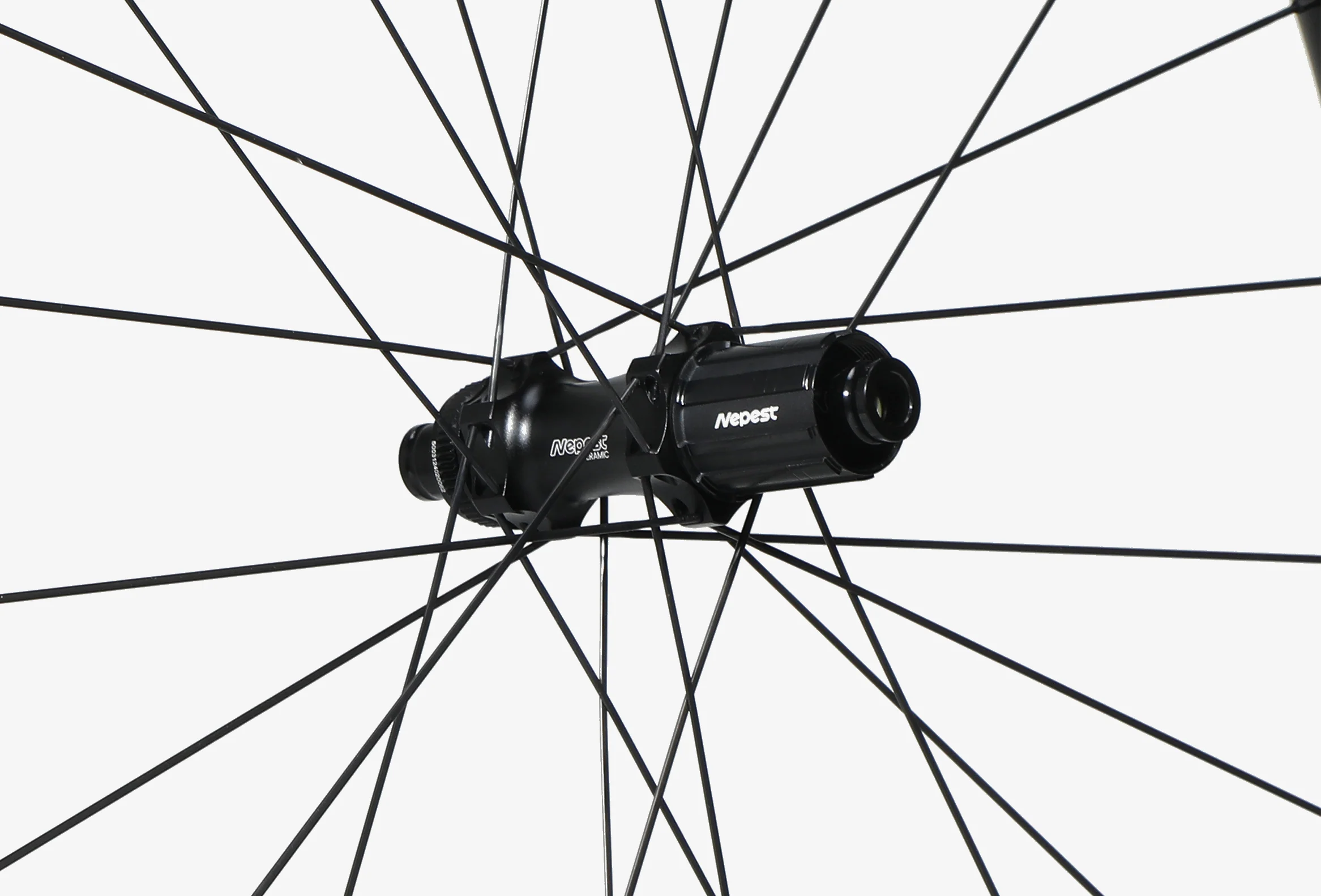

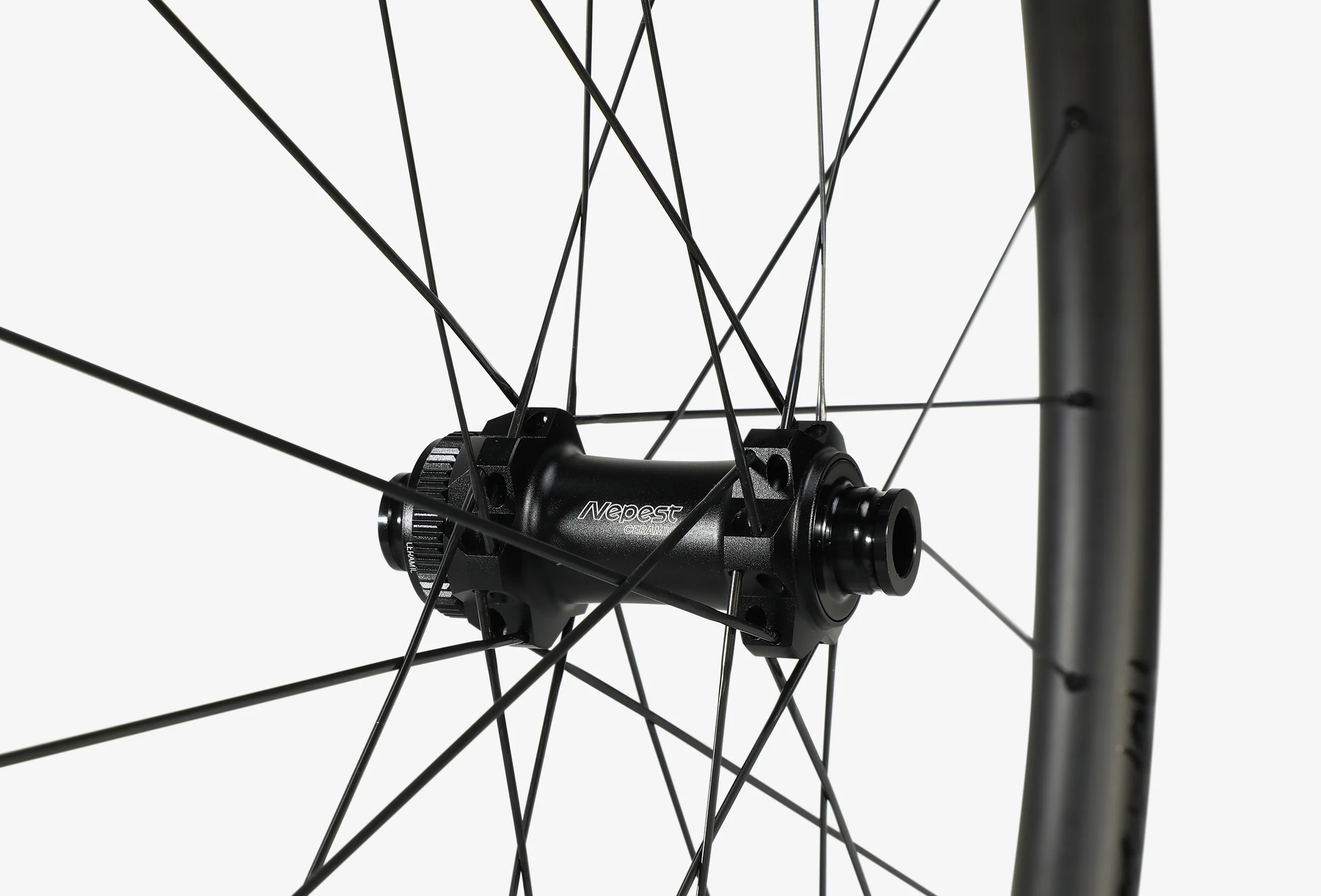

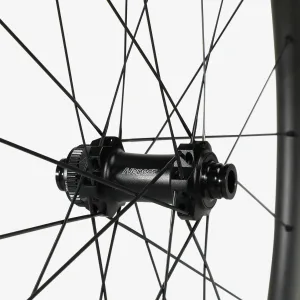

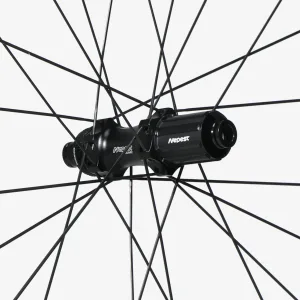

Hub

Ratchet System

The 36T ratchet system technology, featuring high-precision star ratchets, guarantees top performance and reliability.

Spokes

Wider Tire Compatibility

Wider Clearance: Ensure compatibility with wider tires (around 28-50mm) for better traction, comfort, and adaptability to different terrains.

PACKAGE LIST

Please carefully inspect your package when unboxing if it is damaged or if anything is missing, please contact us.

Color

Black, White

Freehub Type

SHIMANO 11/12S, SHIMANO 12S MICRO SPLINE, SRAM XDR 12S

Ratchet

36T, 54T

Warranty

3 Years, 5 Years

Nipple

POLYAX Secure Lock (Alloy), POLYAX Secure Lock (Brass)

Rim Depth

30MM, 40MM
